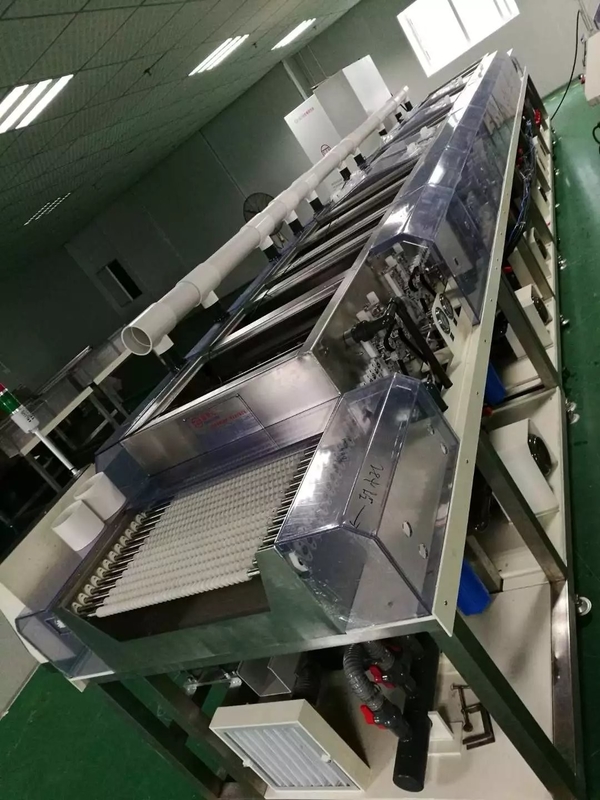

¢12 Nozzle SMT Stencil Cleaning Machine 736x736x40mm High Pressure Easy Installation

^{¢12 Nozzle SMT Stencil Cleaning Machine 736x736x40mm High Pressure Easy Installation}

<sup>Main equipment requirements
1. The equipment is a combined structure for easy transportation and installation; the beating is less than ±0.15mm during operation
2. The equipment body is made of high quality PVC plastic sheet and 304 steel plate. The mechanical and chemical properties are in line with industrial safety.
3. The whole line adopts the standard “Mitsubishi” PLC industrial automatic control and “Wellen” touch screen to operate the man-machine interface.
4. Rolling:
・The material is the same as the full roller for transport, and it should be made into an easy-to-disassemble form.
・Configure before and after the roller brush and before the high pressure spray
5. Roller brush:</sup>

<sup>・The direction of rotation is reversed relative to the direction of flow, but it is also necessary to make a positive rotation of the brush roller. Directly control the front and back of the brush on the touch screen.
The number of revolutions of the brush roller should be adjustable from 0 to 500 rpm.
6. Tank:
Lotion tank Material: SUS304 steel plate, capacity: 80L
Spray tank Material: SUS304 steel plate, capacity: 80L
DI water brushing groove Material: SUS304 steel plate, capacity: 80L
7. Each group of spray pipes has independent ball valves and pressure gauges to adjust the pressure and flow of the upper/lower spray respectively.
8. Washing liquid supply system:
・Install filters and pressure gauges at the outlet of each pump
・Roller brush spray and first alkali wash can be 5um (first 3 channels), 1um at the back end, pure water spray inlet to increase filter with 0.5um filter lye
The filter housing with the wash chamber must be stainless steel.
・Select the pump, flow meter, and pressure gauge, and write the details in the quotation style book.
・The flow rate adjustment valve is installed in the piping of each row of spray nozzles.
・The material of the wetted parts of the lotion should be alkaline.
9. Cutting liquid (air knife)
・Parallel installation on the conveyor roller shaft, the upper and lower air knife and the glass walking direction is 0 degrees, and can be adjusted.
・The pressure gauge and the air volume adjustment damper are installed in the upper part of each air knife.
・Set the exhaust port for each slitting space.
10. Air knife
・The direction is opposite to the axis of the transport roller, and it is set in the direction of the flow direction.
・The pressure gauge and the air volume adjustment damper are installed upstream of each damper.
・The height adjustment of the air knife should be able to be operated manually.
・Design the exhaust port in the dry area.</sup>
