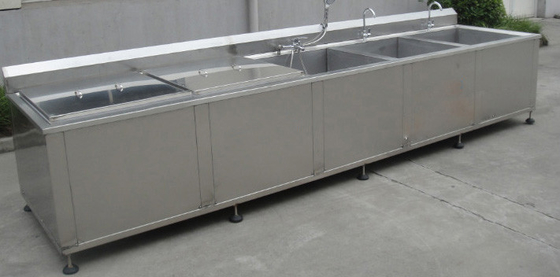

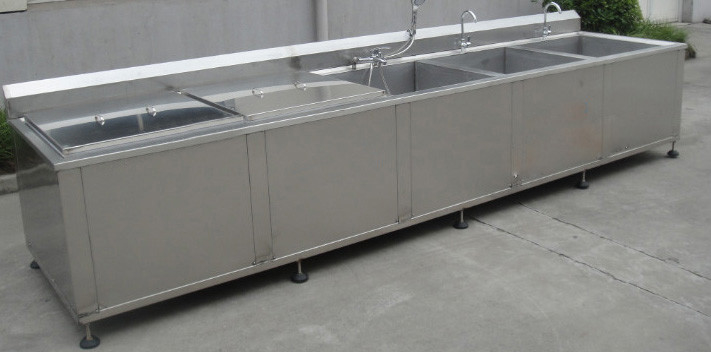

24/60W Manual Ultrasonic Cleaning Machine 28KHz Frequency For Aluminum Industry

^{24/60W Manual Ultrasonic Cleaning Machine 28KHz Frequency For Aluminum Industry}

^{Cleaning process: feeding - 1 ultrasonic degreasing - 2 hot water rinsing - 3 hot air drying - cutting
CCS, as long as you see CCS, it means the abbreviation of Chengcheng Automation.
First tank: ultrasonic cleaning tank}

^{Slot Structure Inner groove size (L × W × H): 550 × 300 × 400mm
Material The inner groove is made of SUS304δ2.0mm stainless steel plate, the vibration surface is made of SUS304δ2.5mm stainless steel plate, and the outer plate is made of δ1.0mm stainless steel plate.
Structure bottom 1 "drain ball valve}

^{UltrasonicSystem form Structure The bottom of the cleaning tank is equipped with ultrasonic vibrators 24/60W, ultrasonic power 1440W (power adjustable), frequency 28KHz
Ultrasonic vibrator Using the Japanese "NTK" chip vibrator, the shock head is bonded: the stainless steel screw rod is firmly connected with the shock head glue.
heating System structure Heating with 4 castaluminum heating plates, heating power is 4KW
Heating system is adjustable for mechanical temperature control 30~110°C}

^{Electric appliance
System structure Built-in ultrasonic generator 1 (with digital display, sweep frequency, adjustable power, time control, etc.)
Components The main electronic components use high quality parts
Second tank: hot water rinse tank}

^{Slot Structure Inner groove size (L × W × H): 550 × 300 × 400mm
Material The inner groove is made of SUS304δ2.0mm stainless steel plate, and the outer plate is made of δ1.0mm stainless steel plate.
Structure bottom 1 "drain ball valve
heating System structure Heating with 4 cast aluminum heating plates, heating power is 4KW
Heating system is adjustable for mechanical temperature control 30~110°C
Third tank: hot air drying tank}

^{Structure Inner groove size (L × W × H): 550 × 300 × 400mm
Material The tank body is made of SUS304 2.0mm stainless steel sheet.
heating
The system structure is heated by a heating pipe, and the heating power is 6KW, which is installed on both sides of the tank body.
The heating system is digitally temperature controlled.
Equipped with a circulating fan,
Components The main electronic components use high quality parts}
