600*500*440mm Ultrasonic Vibration Plate SUS304 Tank Body 1800W Ultrasonic Power

600*500*440mm Ultrasonic Vibration Plate SUS304 Tank Body 1800W Ultrasonic Power

The main technical parameters:

basic principles and characteristics of ultrasonic cleaning

The super-audio electric signal generated by the ultrasonic generator higher than 28 kHz is converted into mechanical oscillation of the same frequency by the piezoelectric inverse effect of the transducer, and is radiated in the cleaning liquid in the form of super-audio longitudinal waves. Due to the alternating positive and negative pressures of the super-audio longitudinal wave propagation, numerous tiny bubbles of more than 1000 atmospheres are generated and blasted at any time to form a fine local high-pressure bombardment on the surface of the cleaning object, so that the dirt on the surface and the gap of the object is rapidly peeled off. This is the "cavitation effect" unique to ultrasonic cleaning.

Ultrasonic tank
CCS-1036A inner groove size (L × W × H): 600 * 500 * 440mm
The tank body is made of imported SUS304 2mm thick stainless steel plate, and the outer cover plate is made of high quality stainless steel plate.

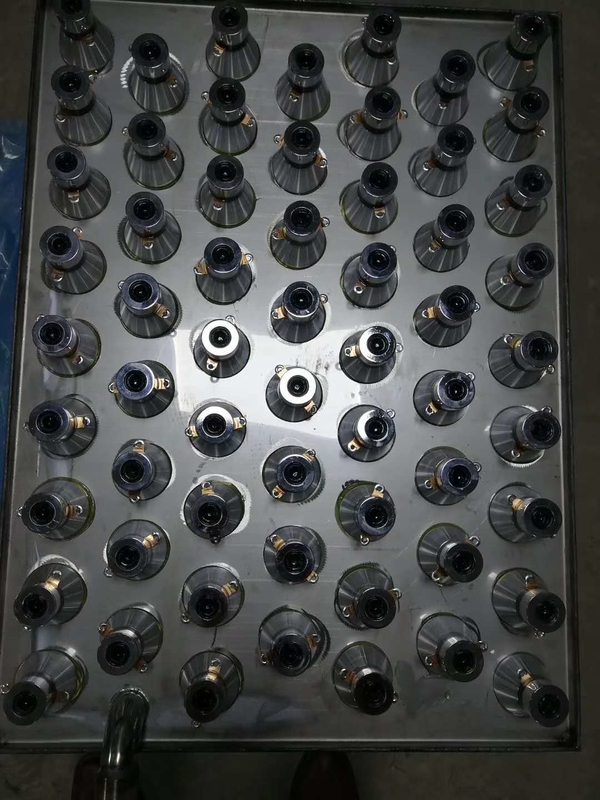

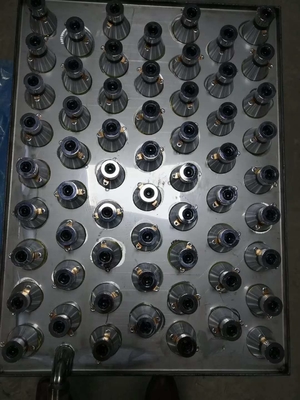

Hs-1036A ultrasonic power is 1800W, ultrasonic frequency: 28KHZ, Japanese NTK transducer chip, transducer and vibration surface bonding is firm and reliable, does not fall off.

 Ultrasonic generator adopts the world's leading other oscillating circuit structure. Compared with the previous self-excited oscillating circuit structure, the output power increases by more than 15%, and the ultrasonic power is continuously adjustable. Operating voltage AC220 ± 10V. The ultrasonic generator has protection measures such as overvoltage, overcurrent, and output short circuit.
