600×600×500 Laboratory Ultrasonic Cleaner , Ultrasonic Washing Machine 1800W Power

600×600×500 Laboratory Ultrasonic Cleaner , Ultrasonic Washing Machine 1800W Power

One: cleaning process:
Feeding---1 ultrasonic cleaning----2 ultrasonic rinsing---3 ultrasonic rinsing---4 hot air drying---5 hot air drying---cutting
Two: cleaning attention to details:
Plastic parts are easier to clean, but the drying temperature should not be too high, and the temperature is generally controlled within 85 degrees. Therefore, the drying needs to be set according to the production cycle as one tank or two tank drying tanks.

Secondly, we must also know some of the characteristics of the raw materials of plastics, as follows:
a. The plastic material is thermally expanded, and the coefficient of linear expansion is much larger than that of metal;
b. The rigidity of general plastic materials is an order of magnitude lower than that of metals;
c. The mechanical properties of plastic raw materials will decrease significantly under prolonged heating;
d. The general plastic material will be subjected to long-term stress under normal temperature and under the stress of its yield strength, and permanent deformation will occur;
e. Plastic materials are sensitive to gap damage;
f. The mechanical properties of plastic raw materials are usually much lower than that of metals, but some composite materials have higher specific strength and specific modulus than metals. If the product design is reasonable, it will be more advantageous;
g. Generally, the mechanical properties of plastic raw materials are anisotropic;
h. Some plastic materials will absorb moisture and cause dimensional and performance changes;
i. Some plastics are flammable;
j. The fatigue data of plastic raw materials is still very small before 2005, and should be considered according to the use requirements.

Three: Take the first slot as an example, the following is introduced:
Inner tank size: 600*600*400 (L×W×H)mm is made of national standard SUS304 2.0mm thick stainless steel plate, which is durable.
It is equipped with stainless steel drain valve and tank steel cover, all made of stainless steel 304 material.
Ultrasonic: ultrasonic power is 2100W, number of vibrators is 42, using bottom shock working mode, surface
Hard chrome plated, durable, ultrasonic frequency: 28KHZ, Japan NTK transducer chip technology, country
Internal assembly, transducer and vibration surface bonding is firm and reliable, high temperature resistance and does not fall off.

• Heating function: heating tube heating method, heating power 6KW, mechanical temperature control
• Controller, control range: RT-100 degrees
• Cleaning medium: cleaning agent + city water

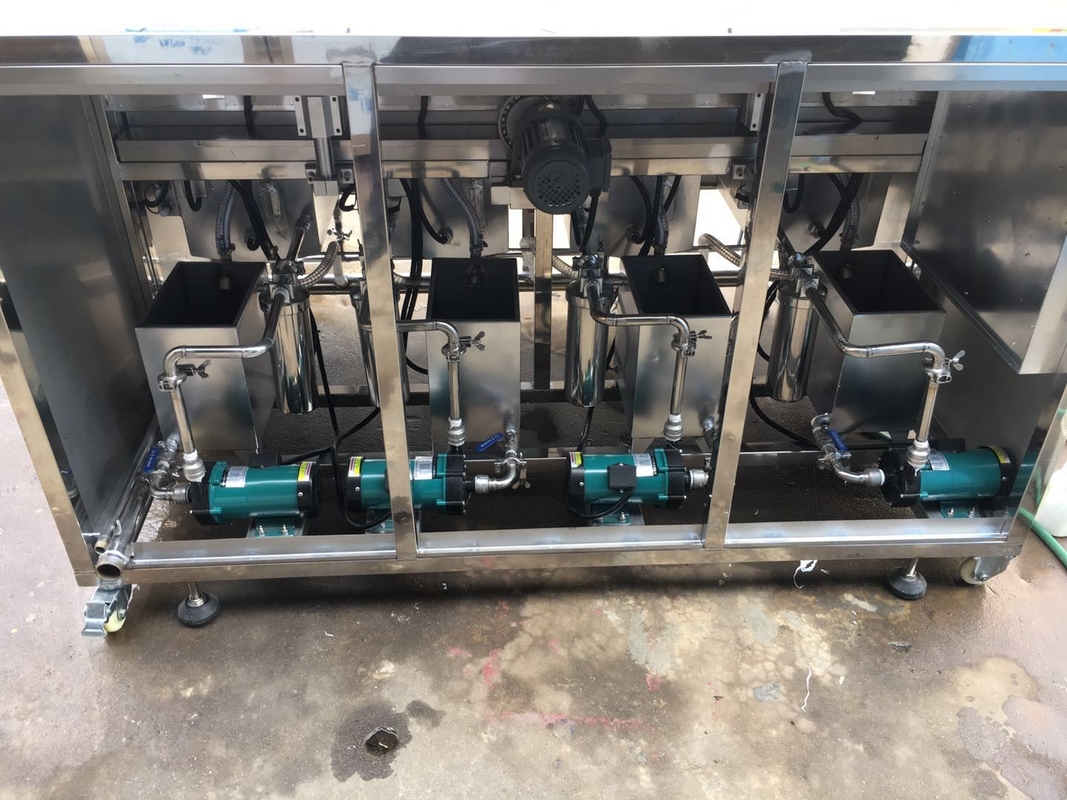

• Circulating filtration: tank size 400*350*400 (L×W×H)mm adopts national standard SUS304
• Filter size: stainless steel 10 inch
