<sup>Design specifications and overall requirements:

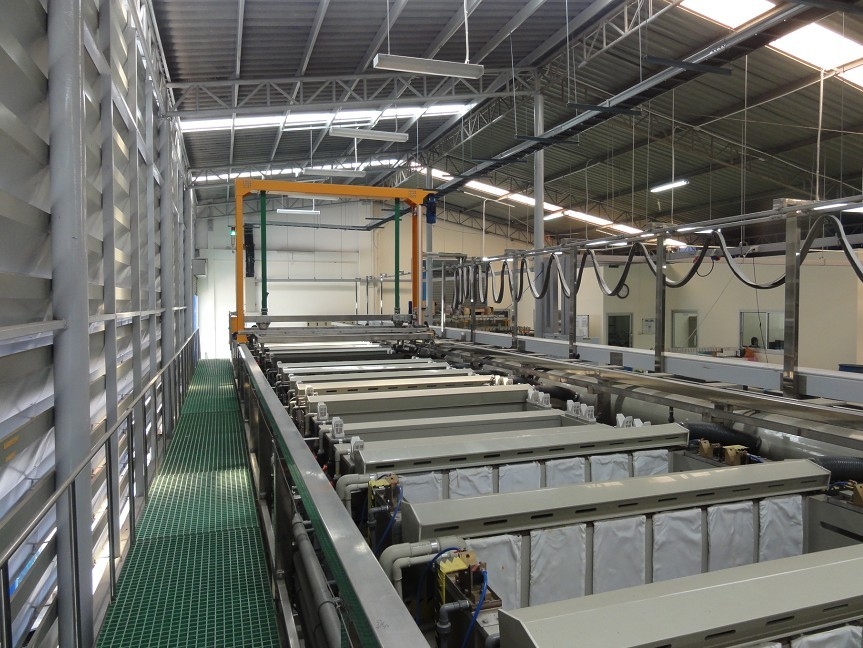

1. The production line is automatically operated by two gantry-type vehicles.</sup>

^{2. The overall layout of the production line is arranged according to the layout plan of the equipment provided by the user. The overall layout of each production line must reflect the progress of each process and the reliability of the process operation, and also take into account the integrity of the waste water and exhaust gas emissions. Coordination;}

^{3. The overall layout of the production line is compact, the site is clean and tidy, the appearance is elegant, the logistics is smooth, the maintenance and maintenance are convenient, and it can fully meet the requirements of national clean and civilized production;}

^{4. The production line is a semi-automatic production line;}

^{5. All production lines adopt the best and most reasonable arrangement, and the drainage ditch is provided. There are enough operation channels between the operation surfaces of each production line to ensure smooth flow and convenient operation and to ensure convenient maintenance and overhaul;}

^{6. The production line trough body is arranged on the anti-corrosion ground, and the height of the operation surface away from the human walking path is guaranteed within 500mm (manual operation area) for easy operation;}

^{7. All production line operation surfaces are provided with corresponding process signs corresponding to the respective slots and corresponding positions, and the process label is engraved with corresponding process parameters, and the process label is in bold blue on white;}

^{8. All main inlet and outlet pipes and pure water main pipes (ie, operation side) of the production line, and the drainage classification enters the corresponding wastewater pipeline;}

^{9. The exhaust gas purification tower of the production line is placed outside the production workshop, and auxiliary equipment such as rectifiers and chillers are placed on the back side of the production line;}

^{10. All transmission systems of the production line, including trunking and line pipe, are placed on the back side of the production line, laid overhead, and concentrated into the corresponding control cabinet; the electric control cabinet is placed in the corresponding control area of ​​the production workshop, and the rectification power supply is equipped with remote control device. ;}

^{11. The ventilation ducts of the production line adopt round air ducts with high strength; the air ducts are supported by brackets, and the main ducts of the production ducts are connected with the main ducts of the production line by hard pipe welding. After the integration, the walls are unified to the production workshop, and all the exhaustors are exhausted. Both the pipeline and the branch pipeline are arranged in the air and enter the exhaust gas treatment tower;}

^{12. The front end of the tank that needs water supply is equipped with tap water or pure water pipeline, and is marked;}

^{13. Each tank that needs to be ventilated will be combined with the overall layout of the workshop, and the side ventilation method is adopted to achieve a neat and beautiful layout in the workshop without affecting the ventilation effect;}

^{14. The tank material is selected and welded according to the composition and temperature of the bath liquid to ensure the welding sealability of the working tank is good, the strength of the tank body, and the tank tightness test is carried out according to the specifications;}

^{15. The heating of the tank body is mainly in the form of electric heating, and the heating element is heated at an initial temperature of 25 ° C, and the heating tube is selected according to the characteristics of the solution;}

^{16. All heating tanks are equipped with liquid level protection device (the PVDF material level is protected by PVDF material) to prevent partial dry burning and damage of the heater. Each heating tank is equipped with automatic constant temperature control device to ensure the process temperature of each heating tank. And time control requirements;}

^{17. Between all the tanks, a grooved grooved cover plate is arranged along the direction of the production line to collect the dripping liquid back to the groove without leaking, and the cover plate can be folded out at any time for easy cleaning;}

^{18, all the slots are equipped with air stirring device, through the manual valve to control the air flow, to ensure good results, all intake valves are located on the operating side, the overall layout should be clean;}

^{19. All valves in the production line are live ball valves, which are easy to repair and replace;}

^{20, the ground is required to lay PP board (the area drawn by drawing), and add 100mm high anti-overflow tray to increase its anti-corrosion performance;}

^{21, the chemical casting groove should be used as a protective fence on the side of the operation surface to increase the safety of the operator;}

^{22. All cables in the production line shall be made of acid-resistant and alkali-resistant cables, and the pipes shall be laid. The trunking and bridges shall be made of SUS304 stainless steel.}
