^{One. Equipment name and quantity:
Equipment Name: Pass-through ultrasonic cleaner production line}

^{Number of devices:}

^{two. Equipment model: CCS-8240UPT}

<sup>three. Equipment model definition: CCS—Dongguan Chengchengshan Automation Equipment Co., Ltd. 8 means: 8 functional segments; UPT definition: U—with ultrasonic; P for spray cleaning; T for non-standard equipment;
4. Equipment use: It is used to clean and remove dirt and oil stains attached to the workpiece, and use water cleaning, cleaning agent and high pressure wind to remove dirt on the surface of the workpiece.</sup>

^{5. Equipment cleaning objects: aluminum products. Capacity: 7000 pieces / 8 hours / day}

^{6. Equipment capacity: The basic washing time and conveying speed are adjustable from 0.3 to 1.0 M/min, and the equipment is designed according to 0.5 M/min.}

^{Seven. Cleaning material size: part size specifications: a variety.}

^{Eight. Equipment dimensions: L10030 × W2000 × H1200 (mm), subject to the final design master plan}

^{Nine. Cleaning process: (from right to left)
Feeding → Ultrasonic cleaning → High pressure fan cutting water → pure water spray cleaning → High pressure fan cutting water → pure water spray cleaning → pure water spray cleaning → High pressure fan cutting water → cooling → cutting → auxiliary artificial water cutting}

^{Ten: Device Description:

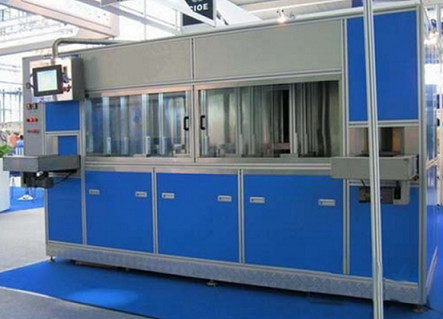

The washing machine is a fully automatic, cleaning process controlled by a programmable controller, and the ultrasonic cleaning section, the spray section, the air knife cutting section and the cold wind section made of stainless steel are continuously operated from washing to drying. . The operator places the workpiece on the feeding conveyor belt, and the transmission device sends the workpiece to each cleaning station in turn. After ultrasonic cleaning, spray cleaning, water cutting and hot air drying, the workpiece is sent to the discharging end, and the workpiece is individually sent to the discharging end. For more complex workpieces, manual blower water cutting is required. The operator removes the workpiece at the discharge end and transfers it to another process. The cleaning and drying part of the whole set is a closed room structure, with a detachable observation window, a push-in movable maintenance door and a good reserved exhaust pipe. The specific structure is shown in the attached drawings and the following description.}

^{Eleven: Design features: The equipment is specially treated for the following aspects in terms of the objects to be cleaned and the cleaning agents used:
 The cleaning chamber is integrated with the liquid storage tank to quickly return water to avoid dirt and dirt.
 Special liquid level, misoperation sound and light alarm device
 Conveying net is made of stainless steel SUS304 material, which is effective in corrosion resistance and protects the workpiece from being scratched.
 LCD touch screen visual operation man-machine interface}
