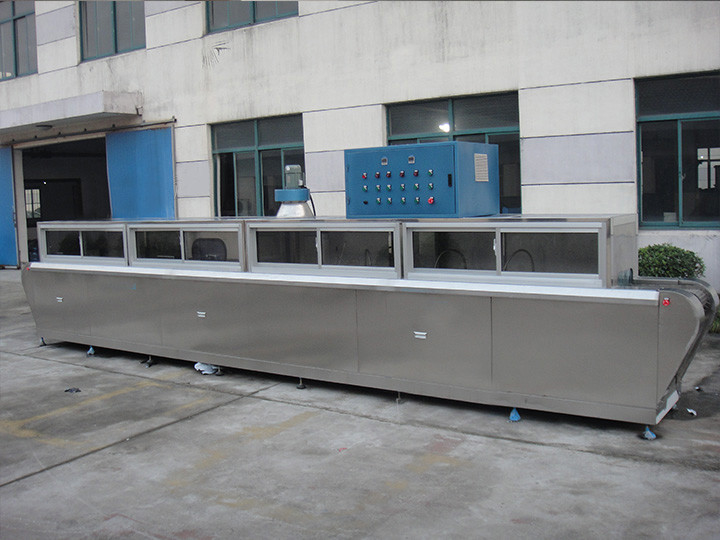

Automatic Tunnel Drying Oven , Infrared Powder Coating Oven Hot Air Tunner Furnace

Automatic Tunnel Drying Oven , Infrared Powder Coating Oven Hot Air Tunner Furnace

<sup>Welding method of plastic welding machine:
1. Welding method: Ultrasonic vibration transmits ultrasonic waves to the weldment along with the welding head. Due to the large acoustic resistance at the two weldments, the local high temperature parts are melted at the interface. Under a certain pressure, the two weldments achieve an aesthetic, fast and strong welding effect.</sup>

^{2, implant (insert) method: nut or other metal to insert into the plastic workpiece. First, the ultrasonic wave is transmitted to the metal, and after high-speed vibration, the metal object is directly buried in the molded plastic, and the plastic is melted, and the solidified material is buried.}

^{3, riveting method: To join metal and plastic or two plastics with different properties, ultrasonic riveting method can be used to make the welding parts not easy to be brittle, beautiful and strong.}

^{4, spot welding method: the use of a small welding head to two points of large plastic products welded, or a whole row of toothed welding head directly pressed on two plastic parts, in order to achieve the effect of spot welding.}

^{5. Molding method: The plastic workpiece is instantly melted and formed by ultrasonic waves, and the metal or other material plastic can be solidified when the plastic is solidified.}

^{6. Resection method: The special design method of the welding head and the base is used. When the plastic workpiece is just shot out, it is directly pressed on the branches of the plastic, and the effect of the resection is achieved by ultrasonic conduction.}

^{Working principle of plastic welding machine:}

^{When ultrasonic waves act on the contact surface of thermoplastic plastic, it will produce tens of thousands of high-frequency vibrations per second. This high-frequency vibration reaches a certain amplitude, and the ultrasonic energy is transmitted to the welding zone through the upper welding part. Since the welding zone, that is, the intersection of the two welded joints, has a large acoustic resistance, a local high temperature is generated. Moreover, due to the poor thermal conductivity of the plastic, it can not be dissipated in time and gather in the weld zone, so that the contact faces of the two plastics melt rapidly, and after a certain pressure, they are integrated into one.}

^{When the ultrasonic wave stops, let the pressure last for a few seconds to solidify it, thus forming a strong molecular chain for welding purposes, the welding strength can be close to the strength of the raw material. The quality of ultrasonic plastic welding depends on the amplitude of the transducer welding head, the applied pressure and the welding time. The welding time and the welding head pressure can be adjusted. The amplitude is determined by the transducer and the horn.}

^{The interaction of these three quantities has a suitable value. When the energy exceeds the appropriate value, the melting amount of the plastic is large, and the welding material is easily deformed; if the energy is small, the welding is not easy, and the applied pressure cannot be too large. This optimum pressure is the product of the length of the side of the welded portion and the optimum pressure per 1 mm of the edge.}
