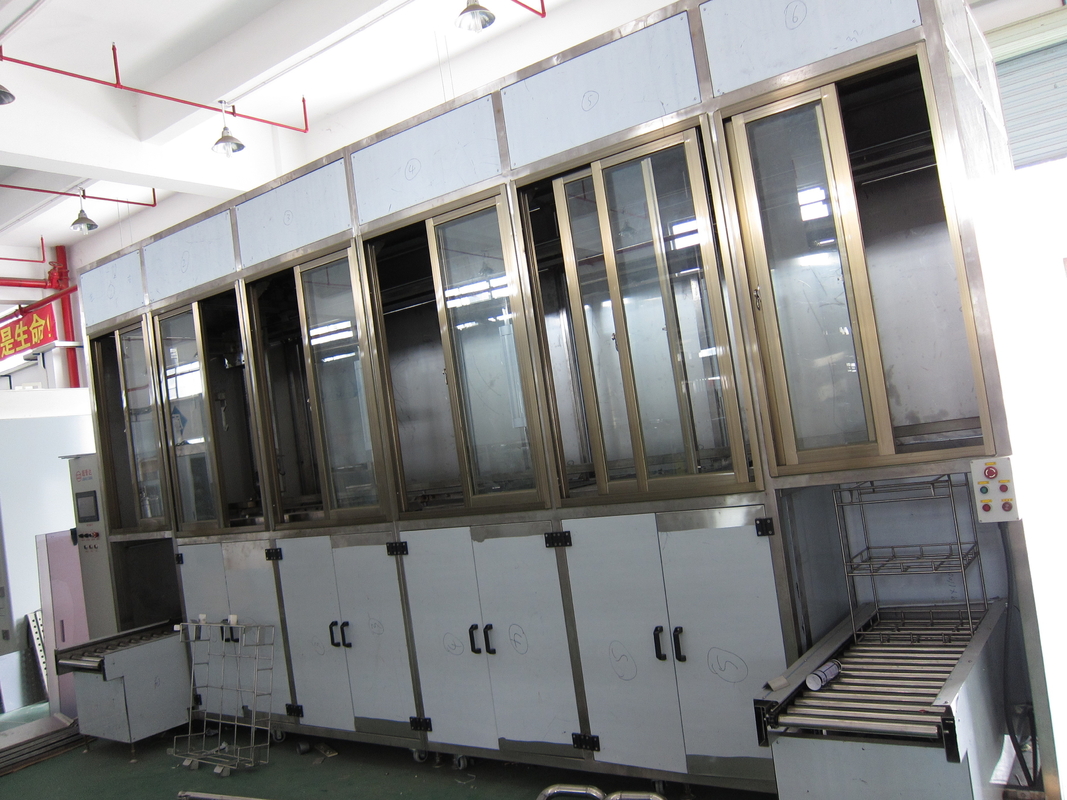

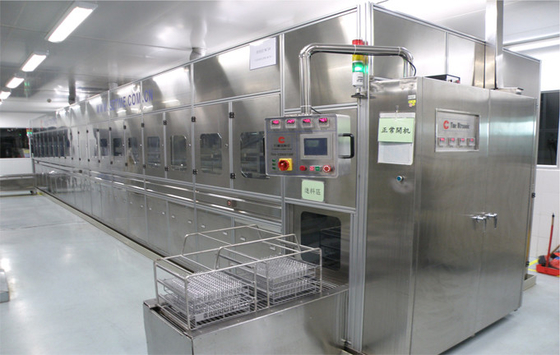

Automobile brake eight-slot ultrasonic cleaning equipment

Automobile brake eight-slot ultrasonic cleaning equipment
In addition to ultrasonic cleaning, this equipment also has a spray cleaning process. The spray section is as follows:
Spray cleaning section: (3# station, cleaning medium is combined with municipal water and cleaning agent)
 Cleaning chamber:
 Cleaning temperature: 50±5oC
Material is SUS304 board/2.0mm.
The chamber is all stainless steel with transparent PVC window
 The spray chamber is integrated with the liquid storage tank, and the returning cleaning liquid can quickly enter the liquid storage tank. After coarse filtration through the coarse filter screen, the spray pump is pushed and the fine filter is finely filtered, and then pumped back to the cleaning chamber for circulation. use
 There is one window in this section
Sprinkle system:
The spray pump adopts “South”, model: CDLK8-20-170/17
 Spray pressure: 1.1-2.1Mpa
 Add a return valve at the outlet of the spray pump to adjust the spray pressure and flow. The inlet of the spray pump is introduced into the front of the equipment and equipped with a filter for easy disassembly.
 Stainless steel bag filter: Specification: 20", and install a pressure gauge before and after the filter to manage the pollution of the filter by differential pressure
 Filtering accuracy: 5μ
 nozzle, nozzle:
The nozzle is made of stainless steel tube. For easy disassembly, it is connected by quick joint. The bracket is made of stainless steel flat joint to prevent deformation of the bracket.
 Adopt “Changyuan” nozzle, the water is solid cone, total number: 46
Liquid tank:
Integrated design with spray chamber, the bottom is strengthened to prevent the tank body from being cleaned and the cleaning fluid is not clean.
Flange type stainless steel filter, pressure gauge installed, pressure difference can be used to manage filter pollution
 Set constant temperature control, digital display thermostat is Japan "Omron" brand, with over temperature alarm
Material is SUS304/2mm, outsourcing 10mm thick insulation cotton
 Low liquid level alarm system, which can automatically turn off heating and pumping and timely rehydration
 Inlet water is provided with solenoid valve control, with bypass valve for backup
The bottom of the tank is set at a certain angle of inclination. The drain valve is installed at the lowest position to facilitate the discharge of the cleaning fluid.
 Set manual drain ball valve to facilitate tank cleaning and maintenance

 heating system:
 The liquid storage tank is provided with electric heating tubes, which are arranged at the bottom of the tank
 Set constant temperature control, digital display thermostat is Japan "Omron" brand, with high and low temperature alarm function
SUS304 stainless steel heating tube, sub-tank heating power: 3KW × 2
Need to know more information, please contact us.
