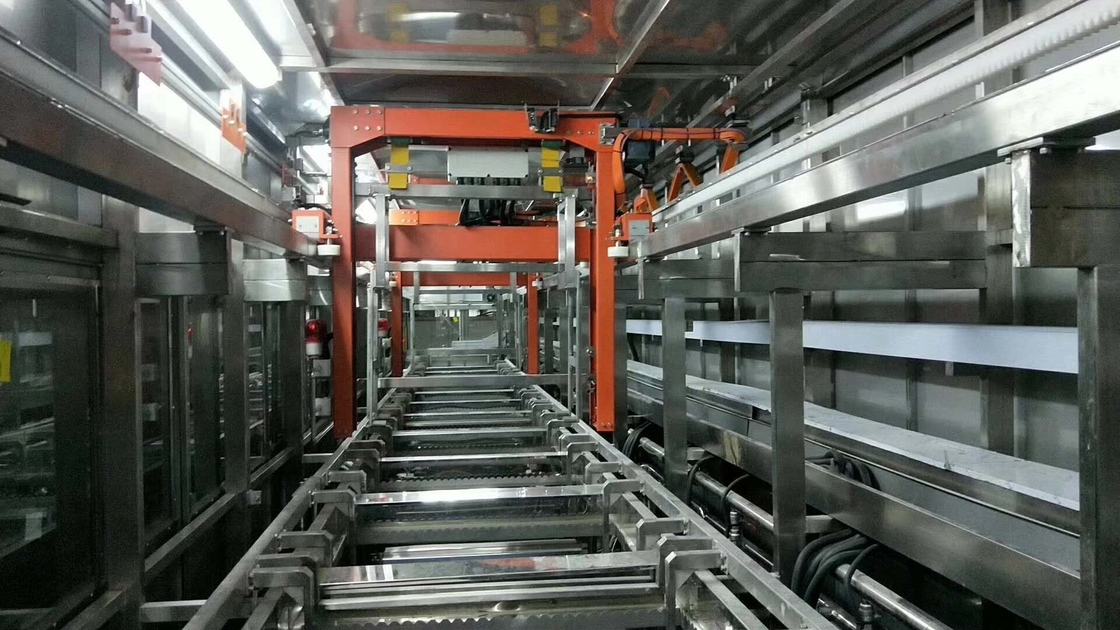

Automobile Ultrasonic Cleaning Machine Stainless Steel Material Fully Enclosed Structure

^{Automobile Ultrasonic Cleaning Machine Stainless Steel Material Fully Enclosed Structure}

^{Special ultrasonic cleaning machine for automobile engine assembly}

^{1: General technical parameters of each slot of the device
 The equipment cleaning part is designed as a fully enclosed structure with an exhaust port
 The cleaning process is fully automatic
 Cleaning time should be automatically controlled, time can be adjusted from 0-99 minutes, status display
The mesh belt bracket is made of stainless steel polished tube, and the water spray board is installed above the spray pipe.}

^{A water tray is installed under the cleaning channel, and the water dripping from the device flows into the water tray.
 Each fueling, adjustment part is marked
 All pumps, fans and motors are marked with the direction of rotation
 The equipment has emergency stop and abnormal alarm device
 All valves are marked with normally open, normally closed, and adjusted indicators. All pipes are marked with arrows for liquid flow.
The piping is welded as much as possible, but only for the convenience of machine maintenance and transportation.
The equipment is equipped with movable doors to facilitate quick maintenance of pipes, filters, pumps, heaters, etc. to ensure production needs.
The control program sets the password lock to prevent unintentional personnel from inadvertently modifying the device parameter values.
 Safety: After the temperature of each section is overheated, the system can automatically power off and there is sound and light alarm. There is liquid level low alarm and chain function in the corresponding tank.
The equipment has a good grounding device}

^{2: Control system:
 Using Japan's “Panasonic” PLC programmable controller to control the whole operation process, it can be fully self-operated or manually operated. Fan, pump manual and automatic can be independently turned on or off independently.
 Each storage level controller is connected to PLC, control rehydration and heating and pumping, abnormal situation to achieve emergency stop, and set sound and light alarm
 Install emergency stop button and alarm device at both ends of the device
 Control panel plus lock to prevent unauthorized personnel from modifying and setting parameters
 The temperature setting control buttons can be locked
 Touch screen control, all the status of pump, motor, heating, liquid level and system are displayed on the man-machine interface
 The heating control part is equipped with a calendar timer. The start of the heating part can be set to be pre-started before the operation, and the constant temperature is automatically adjusted.
 Equipped with independent power distribution cabinet, the function of the circuit is divided into blocks, strong and weak, for maintenance.
 Equipment lighting: inside the electrical cabinet - fluorescent lamp
The equipment, accessories and all ancillary facilities of the equipment shall adopt equipment safety protection measures, and have safety protection measures and devices such as accidental air cut and power failure to maintain the correct position of working components.}
