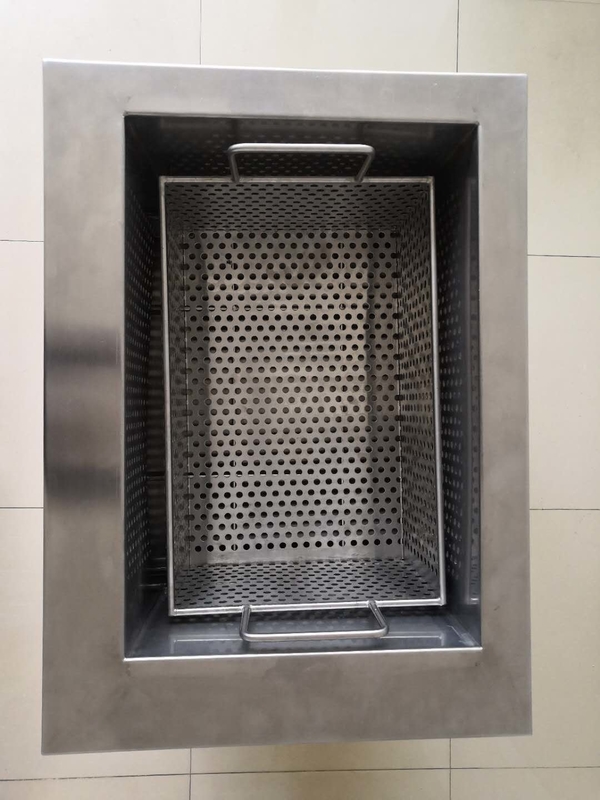

CCS-1048T non-standard single-tank 2400W ultrasonic cleaning machine

Effective size of inner groove: length × width × height: 850 × 300 × 550 (mm)
Application: This type of machine uses municipal water plus a little water-soluble cleaning agent to form a cleaning solution, so the cost of use is low. widely used
For hardware, electronics, watches, machinery, tools, glasses, jewelry, semiconductor wafers, polyester spinnerets and polyester filters
Cleaning of cores and glassware.
Composition: cleaning tank, ultrasonic generator (control box), heating system and other components.

Type: According to the separation of the ultrasonic generator from the cleaning container, such equipment can be divided into two types: split type or integral type;
The position of the transducer is different and can be divided into two types: bottom shock and side shock. Bottom sticky ultrasonic vibrator 48 / 50W, power is
2400W, frequency: 28KHz, heated by heating tube, heating power: 5KW;
Material: All stainless steel construction. The special environmental vibration surface is treated with hard chrome plating, which is resistant to acid and alkali.
Ultrasonic built-in generator: integrated ultrasonic generator.
Performance: Simple power ultrasonic generator: The control box adopts advanced technology such as its excitation line, frequency automatic tracking and frequency sweeping operation under microcomputer control. Compared with the traditional control box, it has stable and reliable operation and continuously adjustable ultrasonic power, which can maximize the potential of the transducer. The operating frequency is automatically tracked for better output matching, more powerful power and higher efficiency. The unique frequency sweeping method makes the cleaning liquid form a small reflow under the action of sweeping frequency, and timely removes the dirt stripped from the ultrasonics away from the surface of the workpiece, thereby achieving a faster and more thorough cleaning effect, and the ultrasonic cleaning efficiency is more high. At the same time, it has perfect protection functions: overheat protection and overcurrent protection, and the work is more reliable.
The low-power ultrasonic generator with digital power adjustment can adapt to various cleaning requirements.
