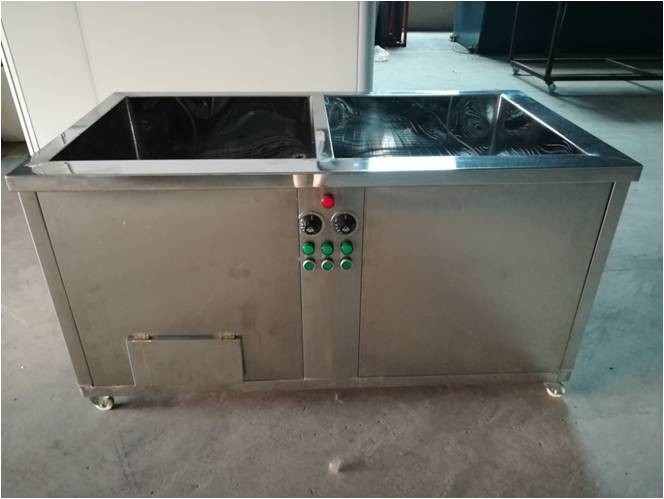

Cheng Chengshan two-slot de-oiling ultrasonic equipment CCS-2068NS

Scope of application:

CCS-2068T double-tank ultrasonic cleaning machine uses water-based solution as cleaning agent with low cost and remarkable cleaning effect. Widely used in electronic zero
Pieces; electroplated parts, precision hardware, straps, case, glasses frames, lenses, jewelry, semiconductor wafers, circuit boards, spinnerets, filters, glassware, etc.
Composition: CCS-2068T double-tank ultrasonic cleaning machine is mainly composed of ultrasonic generator (control box), transducer, ultrasonic cleaning tank,
It consists of a rinsing tank, a cover door panel, movable casters and a heating system.

1, the first tank: ultrasonic cleaning tank

1. Inner tank size (L×W × H): 600×500×400mm
2. Structure: adopts the shock-type structure, the bottom is equipped with 1 "drain ball valve, the tank body is imported stainless steel structure, the inner tank is thick stainless steel plate system
Work.
3. Ultrasonic system: 34 vibrating vibrators before and after the tank body/60W, total viscosity 68/60W, ultrasonic power is 4080W (power can be
Tune), frequency 28KHz. 2 sets of external ultrasonic generators.
4, heating system: heating with cast aluminum heating plate, heating power is 6KW, heating system for mechanical temperature control 30 ° C ~ 110 ° C adjustable.
2, the second tank: rinsing tank
1. Inner tank size (L×W × H): 600×500×400mm
2. Tank material: The tank body is made of imported SUS304δ2.0mm stainless steel plate, and the outer plate is made of δ1.0mm stainless steel plate.
3, heating system: heating with cast aluminum heating plate, heating power: 6KW; heating system for mechanical temperature control 30 ° C ~ 110 ° C adjustable.

Note: Various specifications and models can be customized according to user requirements.
