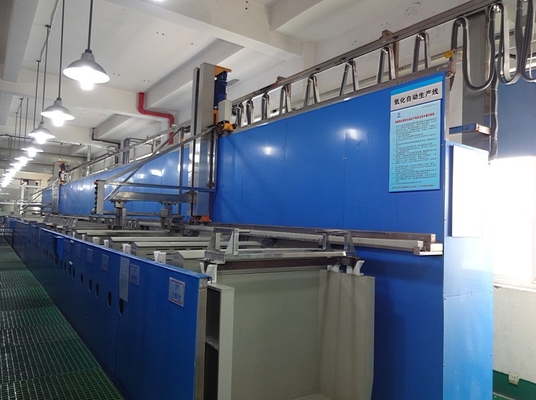

Closed Aluminium Anodising Plant Three Phase Four Wire 60HZ 2200×4500mm With Water Tank

Closed Aluminium Anodising Plant Three Phase Four Wire 60HZ 2200×4500mm With Water Tank

Main configuration requirements of the device:

1, the use of parameters: AC220V / three-phase four-wire / 60HZ, power ≥ 27KW.

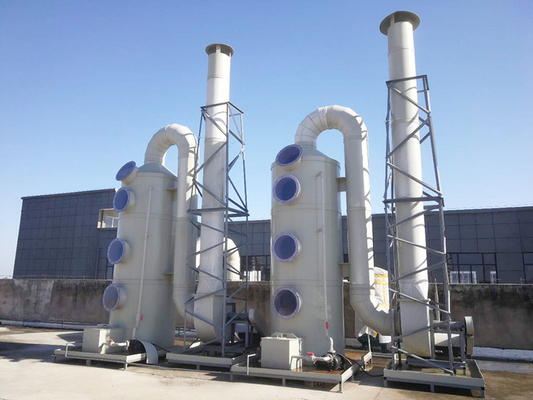

2. Tower body:
The size of the tower body is ¢2200×4500mm.
 Made of 10mm thick PP plate, no deformation, no leakage, good corrosion resistance and beautiful appearance.
The first floor is equipped with a water tank for spraying.
The sputum discharge port is provided with a detection port for detecting the quality of the gas treatment.
The inside of the tower is filled with an exhaust balloon, and the balloon is filled with a thickness of 300 mm or more.

3. Sprinkler:
 Pipe: Spray pipe ¢ 1" PVC pipe, spray pipe ¢ 2" PVC pipe.
 nozzle: POM spiral nozzle, with large flow, easy to replace and so on.
 spray pump: chemical centrifugal pump, power: 5HP.

4. Control part:
 The control box is made of δ2.0mm A3 plate bending, and the surface is sprayed and processed, which is beautiful and generous.
The start and stop buttons of each load, the sound and light alarm installation should be neat and easy to operate.
 With overheating and overcurrent protection and automatic alarm device.
 The control box is locked to prevent unauthorized personnel from opening the control box at will.

5, pumping pipe:
The draft hood is designed according to the process requirements, all of which are connected to the exhaust main pipe by the hard pipe; the exhaust main pipe reserves the interface, and the external exhaust fan is installed to ensure the exhaust gas emission concentration and exhaust gas volume reach the GB21900-2008 “Electroplating Pollutant Emission Standard” 4.2 The requirements of the strip, and the height of the main exhaust pipe is not less than 15 meters. Design a reasonable installation method to ensure the installation of the exhaust pipe is firm, reliable and safe. The ventilation pipe is made of 6mm PP plate, which is not deformed, has high strength, good corrosion resistance and no leakage. The exhaust pipe is provided with a liquid discharge port at the lowest point of the end and the pipe is connected to the acid-base comprehensive wastewater discharge pipe.
The exhaust pipe is located at the top of the production line. The design is reasonable and reasonable. The position, size, branch pipe and main pipe of the exhaust vent are arranged neatly, beautifully and harmoniously. It has good ventilation effect to ensure timely and completely exhausted exhaust gas emitted from the tank.

 For long pipelines, the pressure loss of the ventilation duct is very large, resulting in poor air extraction at the end of the net. In order to make the drafts of the production line basically the same, it is required to have an effective duct layout, and be provided on each suction branch pipe. The air volume adjusting device can adjust the amount of air exhausted at will to ensure the exhausting effect of the entire production line.
 The total length of the exhaust pipe is mm900mm.
 Exhaust pipe fixing bracket adopts 40*40*4.0mm galvanized angle steel, and the surface is sprayed with epoxy resin.

6, the exhaust fan:
Using Guangzhou “Wantong” FRP centrifugal fan, power 60HP, air volume: 56000M3/H.
