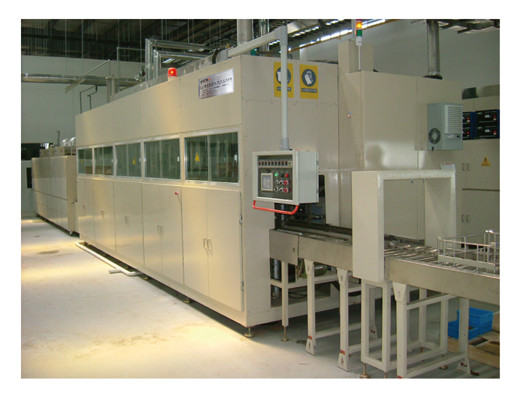

Continuous Tunnel Drying Oven Customized Conveyor Belt Heat Shrink Multi Layer

Continuous Tunnel Drying Oven Customized Conveyor Belt Heat Shrink Multi Layer

^{How the machine works:
The 220V/50HZ power supply is converted into 20KHz or 15KHz high-voltage electric energy, which is converted into mechanical energy by the transducer. The mechanical vibration is transmitted to the workpiece through the welding rod through the secondary rod amplification, and the workpiece contact surface is generated by the air pressure. The effect of friction welding.}

^{Installer:
A: Connect the three cables on the rack to the socket of the base and the generator, and tighten them.
B: Install the transducer system and tighten the set screws.
C: Adjust the height of the rack and tighten the body fixing handle.
D: Observe whether the emergency stop switch on the base is reset. If not, please reset it.
E: Connect the air source and power supply, and connect the ground wire.
F: Wipe the contact surface between the welding head and the secondary rod, apply a small amount of silicone oil or butter on both end faces, screw the screw into the welding head and tighten, then connect the welding head to the secondary rod. And locked with a wrench.
G: Before operation, be sure to perform ultrasonic testing to determine that the generator frequency is consistent with the mechanical resonance frequency of the transducer system. In particular, after replacing the weld head or changing the output amplitude, it must not be negligent.}

^{Ultrasonic testing:
In order to achieve the best results and maintain the performance of the machine, it is very important to adjust the resonance between the generator and the transducer system.
A: Before tuning, make sure that the welding head and the secondary rod must be locked. When tuning, do not touch the other parts of the welding head.
B: Turn on the power switch, and the power indicator will light.
C: Press the ultrasonic test switch and look at the load meter. (If the ammeter pointer exceeds 30% or exceeds 2A, press the ultrasonic test switch for a very short time.) Adjust the tuning inductance and rotate it left and right until the load meter is in the minimum position. Usually between 5%-15% or 300MA-900MA.
D: Because the machine has a card position, the adjustment range of the tuning inductor is only 360 degrees. If the frequency of the welding head is far from 20KHZ or 15KHZ, the cover needs to be opened and the fixed position should be disassembled for adjustment.}
