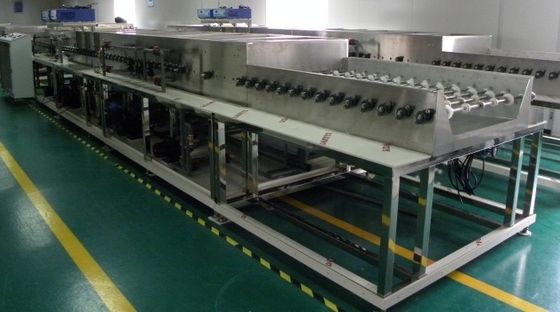

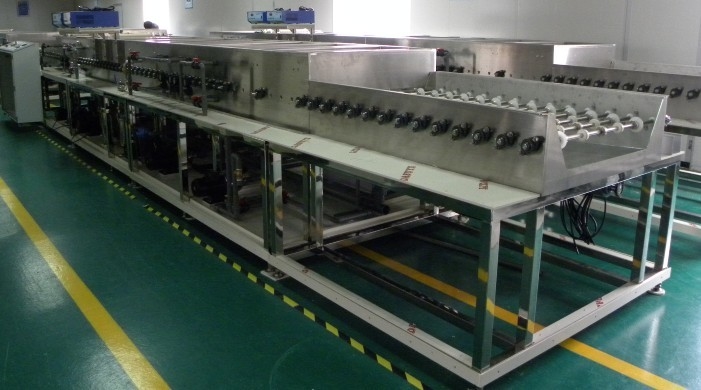

Customized Automatic Board Cleaner , PCB Cleaning Equipment 360mm Pray Length

Customized Automatic Board Cleaner , PCB Cleaning Equipment 360mm Pray Length

^{1:DI water spray cleaning
※ Spray cleaning section length: L=360mm
※ Nozzle distribution: 5/6 nozzles per row, 90mm spacing between rows and rows, staggered mouths
※ Nozzle model: transparent PP fan nozzle; CC1/4-PP6504
※ Spray pattern: The fan shape is required to be complete, and the washing liquid sprayed on the glass by the adjacent nozzles should be continuous and must not be disconnected.
Spray pressure ≤0.2mpa.
※ Spray pump: “Southern” stainless steel water pump 0.37KW 1 set
※ Flow and spray pressure: can be adjusted by switch
※ City water circulation filtration accuracy: ≤1um
※ In-tank liquid level sensing system: with minimum liquid level sensor and highest liquid level sensor
※ Spray pressure control: each set of nozzles has independent control valves and pressure gauges
※ Material of the storage tank: stainless steel Capacity: 100L / set Quantity: 1 set
※ Storage tank position: inside or outside the machine
※ Overflow device: Yes}

^{2: DI washing section
※ Spray cleaning section length: L=350mm
※ Nozzle distribution: 5/6 nozzles per row, 90mm spacing between rows and rows, staggered mouths
※ Nozzle model: transparent PP fan nozzle; CC1/4-PP6504
※ Spray pattern: The fan shape is required to be complete, and the washing liquid sprayed on the glass by the adjacent nozzles should be continuous and must not be disconnected.
Spray pressure ≤ 0.1mpa.
※ Flow and spray pressure: can be adjusted by switch
※ Pure water circulation filtration accuracy: ≤0.5um
※ Spray pressure control: each set of nozzles has independent control valves and pressure gauges
※ Water source: directly connect to customer pure water with flow meter.}

^{3 cold air drying section
※ Length of air drying section: L=700mm
※ Air knife layout: 2 × 2 (2 columns, 2 upper and lower) and 0 ° angle with the glass walking direction
※ Air knife effect requirements: no visible residual liquid on the upper and lower surfaces of the glass after passing the air knife
※ Air supply method: slit air supply
※ Air supply mode: oil-free high pressure fan
※ Filtration system; medium / high efficiency filter
※ Fan power: 5HP}

^{4 hot air drying section
※ Length of air drying section: L=805mm
※ Air knife layout: 2 pairs (4 upper and lower) at an angle of 0° to the glass walking direction
※ Air knife effect requirements: no visible residual liquid on the upper and lower surfaces of the glass after passing the air knife
※ Air supply method: slit air supply
※ Air supply mode: oil-free high pressure fan
※ Filtration system; medium / high efficiency filter
※ Fan power: 3HP
※ Heating system: Yes (heating power: 1.5KW)
※ Static control target: electrostatic voltage is less than 500V
※ In addition to static device: in addition to electrostatic ion blower SL-002}

^{5 discharge section
※ Length of discharge section: L=1010mm
※ Configuration: Sensor Drive system: CPG motor: 1/2P 3∮380V.}
