Customized Automatic Cleaning Machine Multi Tank 600×600×500 For Cleaning Oil Stains

Customized Automatic Cleaning Machine Multi Tank 600×600×500 For Cleaning Oil Stains

a), main use and scope of application
It is mainly used for cleaning oil stains, impurities and fingerprints on the surface of aviation parts. The main material of the workpiece is aviation aluminum.

b), device name:

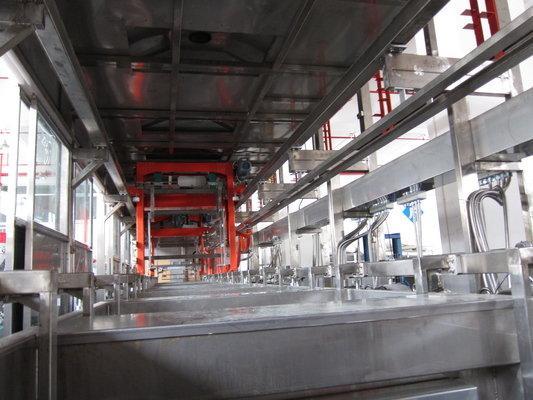

Fully automatic closed multi-tank ultrasonic cleaning machine

c), washing machine specifications:

• Inner groove size: 600 × 600 × 500MM
• Dimensions: 12000 × 2000 × 2800MM
• Robot arm form: gantry multi-arm manipulator
• Lifting weight: greater than 200KG
• Production: 5min/basket, adjustable beat

d), the composition of the model and its representative meaning
CCS 12 336 MWF
↓ ↓ ↓ ↓
Company Name Twelve Slots 336 Seismons Closed Automatic Washing Machine), working conditions

1. Workpiece Name: Precision Aviation Parts
2. Workpiece size: 300 × 200 × 200
3. Workpiece output: 5min/basket
4. Ambient temperature: -5~40°C
5. Humidity: ≤80%
6. Factory grade: standard factory (actual)
7. Bearing capacity per square meter: greater than or equal to 3T

f), impact on the environment and energy Meet ROHS standards

g) Introduction to the PLC programmer of this equipment:
The factory generally uses PLC brands: Omron, Siemens, Mitsubishi, Schneider, Panasonic, etc., of which Panasonic PLC is the most used. Because Panasonic PLC products are not the best, but not bad at all, the main reason is that there is no fake:

Among Panasonic's PLC products, FPO is a micro-machine, FP1 is an integrated mini-machine, FP3 is a medium-sized machine, FP5/FP10, FP10S (an improved FP10), and FP20 is a mainframe, of which FP20 is the latest product. The main features of Panasonic's PLC products in recent years are: the command system has strong functions; some models also provide CPUs and various intelligent modules that can be programmed in FP-BASIC language, providing software means for the development of complex systems; FP series Various PLCs are equipped with communication mechanisms, which are convenient for constructing multi-level PLC networks and developing PLC network applications due to the consistency of the application layer communication protocols they use.
