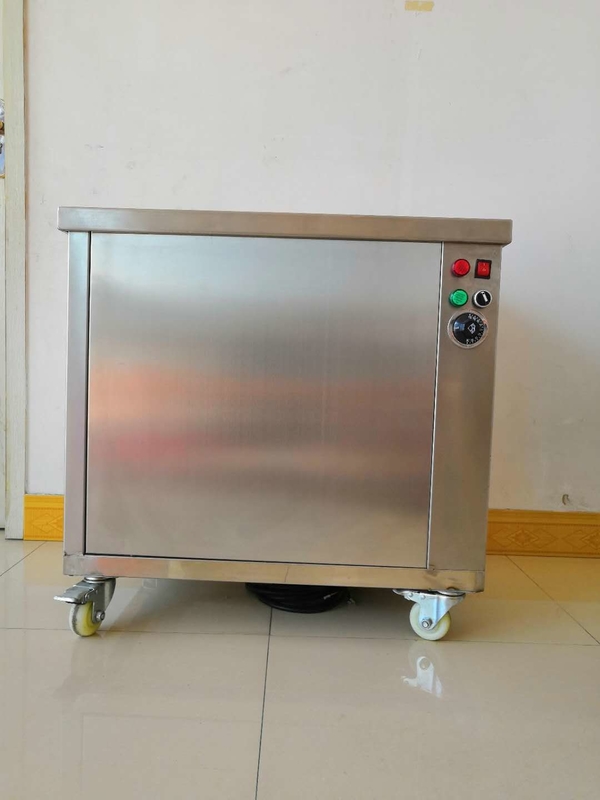

Customized machine CCS-1072NS mechanical parts ultrasonic cleaning machine

Precision mechanical parts such as precision turning parts, milling machine parts, mechanical parts, ball screws, turning and milling spindles, etc., will produce oil and dust particles in the production process. In order to meet the cleanliness requirements, ultrasonic cleaning is generally used. Wash it.
Ultrasonic description
CCS-1036NS inner groove size (L × W × H): 1100 * 450 * 450mm
2. The ultrasonic power of CCS-1036NS is 1800W, the number of vibrators is 36, ultrasonic frequency
28KHZ, Japan NTK transducer chip, domestic assembly, transducer and vibration surface bonding is firm and reliable, and it is glued with high temperature resistant glue to ensure it does not fall off.
3. The ultrasonic generator adopts the world's leading structure of its exciting oscillation circuit, which is more than before.
The self-excited oscillating circuit structure increases the output power by more than 15%, and the ultrasonic power can be continuously
Tune. Working voltage AC220±10V. Ultrasonic generator with overvoltage, overcurrent, output
Protection measures such as short circuit.
4. Equipped with heating device 3KW, using mechanical temperature control mode, temperature adjustable.
This single-slot integrated ultrasonic cleaning machine adopts advanced technology such as its exciting circuit, frequency automatic tracking and frequency sweeping working mode under microcomputer control. Compared with the traditional control box, it has the functions of stable and reliable operation, time adjustment, and continuous adjustment of ultrasonic power, which can maximize the potential of the transducer. The operating frequency is automatically tracked for better output matching, more powerful power and higher efficiency. The unique frequency sweeping mode makes the cleaning liquid form a small reflow under the action of sweeping frequency, and timely removes the dirt stripped from the ultrasonic layer away from the working surface, thereby achieving a faster and more thorough cleaning effect, and the ultrasonic cleaning efficiency is more high. At the same time, it has perfect protection functions: overheat protection and overcurrent protection, and the work is more reliable. With digital power adjustment, it can adapt to various cleaning requirements. The working status of the boot is free to change and the use is more free. The whole machine adopts modular design and cooperates with computer fault location and display system to make it more convenient to use and maintain.
