^{First, the device name and model
1.1 Equipment Name: Flat Glass Washer
1.2 Equipment Model: CCS-ITO500 Coating Front Glass Washer
Second, equipment use}

^{2.1 Cleaning and drying of the glass surface}

^{Third, equipment production (cleaning) ability
3.1 Workpiece size: MIN: 75mmX50mm MAX: 400mmX500mm
3.2 conveying speed: 2.5m / min (1 ~ 6m / min adjustable)
3.3 substrate thickness: 0.2 ~ 2mm}

^{Fourth, production (cleaning) quality standards
4.1, there are no particles above 1um on the surface of the workpiece, and particles below 1um are less than 1/cm2
4.2, no stains, water marks, scratches on the glass surface after cleaning
4.3, no cards, laminations in the glass cleaning process}

^{V. Process flow and parameters
5.1 Process
Feeding section→pre-spraying→wind cutting1→washing roller brush cleaning 1+2→wind cutting 2→pure water roller brush cleaning 1+2→medium pressure spray washing→BJ cleaning→DI water spray washing→ DI water washing → two sets of air knife cutting water → two sets of hot air drying → discharge section + static elimination device
5.2 Equipment design: workpiece left to right}

^{Sixth, equipment parameters and technical requirements
6.1 Equipment size and materials
6.1.1 Equipment body size: (L) 7650 × (W) 1500 × (H) 1200mm slight difference in manufacturing
6.1.2 Body material: Made of 304 stainless steel plate &=4mm material.
6.1.3 Rack material: SUS304 steel square pass 50X50X2
6.1.4 Water tank material: "South Asia" transparent / ivory PVC board & = 10
6.1.5 Shell door panel: "South Asia" transparent / ivory PVC board & = 6
6.1.6 Upper cover: "South Asia" transparent PVC board &=6
6.2 Equipment power requirements
6.2.1 Power supply: 380VAC±10V/50Hz
6.2.2 Total power consumption of the whole machine: 35KW
6.2.3 Water consumption: 20～30L/Min (15MW or more pure water)
6.2.4 Air consumption: 600L/min Pressure: 0.4Mpa
6.2.5 Total inlet pipe: UPVC 1”
6.2.6 Total drain: UPVC 2”
6.2.7 Spray pipe: UPVC 3/4”
6.3 Overall description of the device
6.3.1 Equipment structure}

^{The cleaning machine is mainly composed of a spraying system, a roller brushing system, a BJ system, an air knife drying system, a circulation filtering system, an automatic temperature control heating system, a liquid level automatic control and an automatic liquid refilling system, a rack control panel and a control system.
6.4 Description of the main components of the equipment

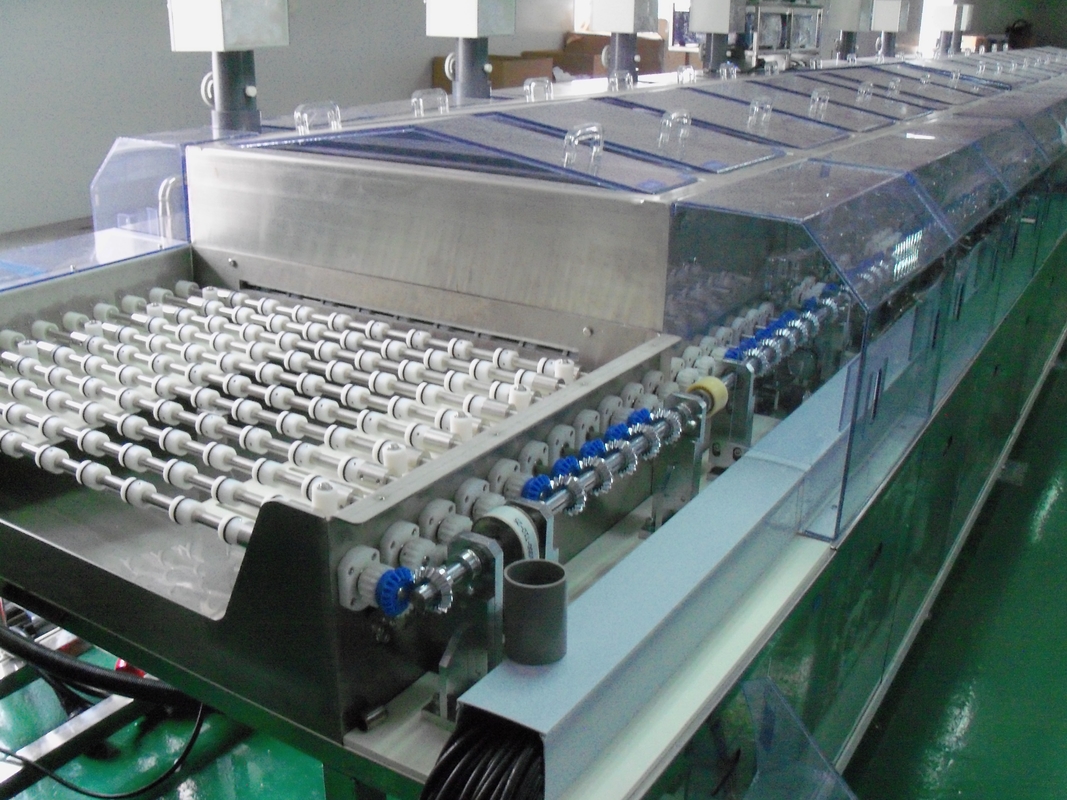

6.4.1 Transfer section
※Substrate transfer method: roller and rubber roller transfer diameter φ26mm
※Adjustable transmission speed range: 1~6m/min
※Transmission speed adjustment mode: digital display inverter or knob inverter adjustment
※Transmission speed display: digital display
※ Drive position: The transmission system is isolated from the sprinkler system (external drive of the tank)
※Transfer shaft spacing: 30mm, the brush is 65mm.
6.4.2 Feed section
※ Feeding section length: L=490mm
※ Configuration: Sensor Drive system: CPG motor: 1/2P 3∮380V.}
