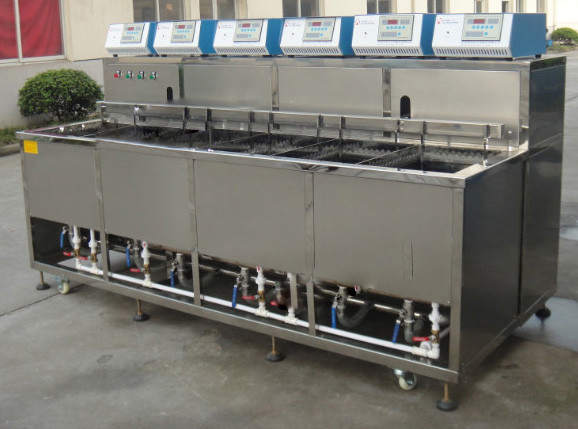

The washing machine is a fully automatic ultrasonic cleaning machine. The cleaning process is controlled by machinery. Four continuous cleaning lines consisting of ultrasonic cleaning tank, rinsing tank and drying tank made of stainless steel, the operator will be equipped with workpieces. After the cleaning basket is placed in the designated position, it is sequentially sent to each process segment to perform a series of cleaning on the workpiece, and after the material is cut, a cleaning process is completed. The specific structure is shown in the drawings and the following description.
▲ Basic principles and characteristics of ultrasonic
The 28 kHz super-audio electrical signal generated by the ultrasonic generator is converted into a mechanical oscillation of the same frequency by the piezoelectric effect of the transducer and radiated in the cleaning liquid in the form of a super-audio mechanical wave. Due to the alternating action of the positive pressure zone and the negative pressure zone of the super-audio mechanical wave propagation, numerous tiny bubbles of more than 1000 atmospheres are generated and blasted at any time to form a fine local high-pressure bombardment on the surface of the cleaning object, so that the dirt on the surface of the object and the gap is rapid. Peeling, this is the "cavitation effect" unique to ultrasonic cleaning.
Main technical parameters of the cleaning tank

First tank: ultrasonic washing tank

1. Main tank body:
(1) Effective inner groove size: 600×600×500L×W×H mm, effective height 400MM
(2) The tank body is made of SUS304 2.0mm stainless steel sheet.
(3) equipped with water valve, drain valve, sewage into the total drain;
(5) Cleaning medium: municipal water + degreasing powder

2. Ultrasound system:
(1) Ultrasonic frequency: 40KHZ;
(2) Ultrasonic power: 1800W
(3) Ultrasonic vibrator: 36 pieces, 50W/only, immersed ultrasonic vibration plate, sia plate thickness SUS 2.0MM stainless steel plate, mounted on the bottom of the tank, the core part of the vibrator adopts Japan "Ben Duo" brand chip, shock plate The surface is hard chrome-plated for durability.

3. Heating system:
(1) Heating by means of a heating pipe, installed on the side of the tank body,
(2) Heating power 6KW.
(3) The temperature controller brand adopts Omron brand, and the display mode: digital display.
