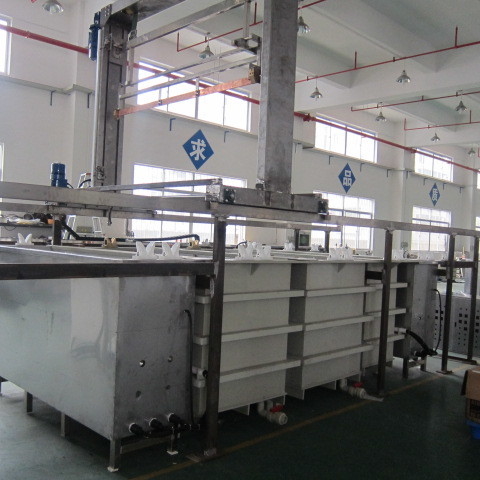

Full Computerized Aluminium Anodizing Machine Alloy Automatic Oxidation Line

Full Computerized Aluminium Anodizing Machine Alloy Automatic Oxidation Line​​

^{Alkaline washing tank 1
1-1 Basic structure:
 Made of 3mm stainless steel plate 316L material, ensuring that the tank body is not deformed or leaking, has good corrosion resistance and beautiful appearance, and the tank body is designed with side discharge ports.
The inner groove size (L×W×H): 1400×2000×1200 mm.
Reinforcement of the trough body and groove side: Square welding of 80*40*4MM made of A3 material, the thickness of the tank body is 50MM, the interior is filled with 100MM rock wool, and the outer surface is SUS 304 1MM steel plate.}

^{1-2 Ultrasound system:
22 sets of input shock plates.
 shock plate material: SUS316 stainless steel plate 2.5mm; vibration surface plated with hard chrome;
42 Each shock plate is equipped with 42 shocks (Japan “NTK” seismic chip), each shock 60W, each set of shock plate power 2.5KW; frequency is 28KHZ,
There are 8 shock plates installed in the tank, 8 sound generators, and one generator.}

^{1-3 heating system:
 Heating method: electric heating, heating pipe installed in the tank.
Two heating pipes are installed in the gutter, the working voltage is AC380V, and the power of each heating pipe is 4KW, a total of 8KW.
 Japan "Omron" digital display temperature controller automatic temperature control, Teflon temperature probe temperature detection.
The low level alarm device automatically turns off the heating system when the water level is below the minimum level.}

^{1-3 piping:
 Inlet pipe: ¢ 3/4" PP pipe (pipe fitting / ball valve).
Drainage pipe: ¢ 1-1/2" SUS316 pipe (pipe fitting / ball valve).
 Air agitation: ¢ 3/4" SUS316 tube (pipe fitting / ball valve).}

^{2 washing tanks 14
2-1 basic structure:
It is made of 12mm PP plate to ensure that the tank body is not deformed, leaking, good corrosion resistance and beautiful appearance.
The inner groove size (L×W×H): 1400×2000×1200 mm.
Reinforcement of the trough body: 40*80*3.5 A3 flat pass reinforcement, after the anti-corrosion treatment, outsourcing the same color 3mm thick PP-U groove cover sealing welding.
Reinforcement of the groove side: 20mm thick PP plate chamfering of the same color.
The overflow tank has an overflow box with an overflow port diameter of 1.5".}

^{2-2 Piping:
 Inlet pipe: ¢3/4" PVC pipe (pipe fitting / ball valve).
 Drainage pipe: ¢ 2" PP pipe (pipe fitting / ball valve).
 Air agitation: ¢ 3/4" PP pipe (pipe fitting / ball valve).}

^{3-1 basic structure:
 Made of 3mm stainless steel plate 316L material, ensuring that the tank body is not deformed or leaking, has good corrosion resistance and beautiful appearance, and the tank body is designed with side discharge ports.
The inner groove size (L×W×H): 1400×2000×1200 mm.
Reinforcement of the trough body and groove side: Square welding of 80*40*4MM made of A3 material, the thickness of the tank body is 50MM, the interior is filled with 100MM rock wool, and the outer surface is SUS 304 1MM steel plate.}

^{3-2 heating system:
 Heating method: electric heating, heating pipe installed in the tank.
Two heating pipes are installed in the gutter, the working voltage is AC380V, and the power of each heating pipe is 4KW, a total of 8KW.
 Japan "Omron" digital display temperature controller automatic temperature control, Teflon temperature probe temperature detection.
The low level alarm device automatically turns off the heating system when the water level is below the minimum level.}

^{3-3 piping:
 Inlet pipe: ¢ 3/4" PP pipe (pipe fitting / ball valve).
Drainage pipe: ¢ 1-1/2" SUS316 pipe (pipe fitting / ball valve).
 Air agitation: ¢ 3/4" SUS316 tube (pipe fitting / ball valve).}
