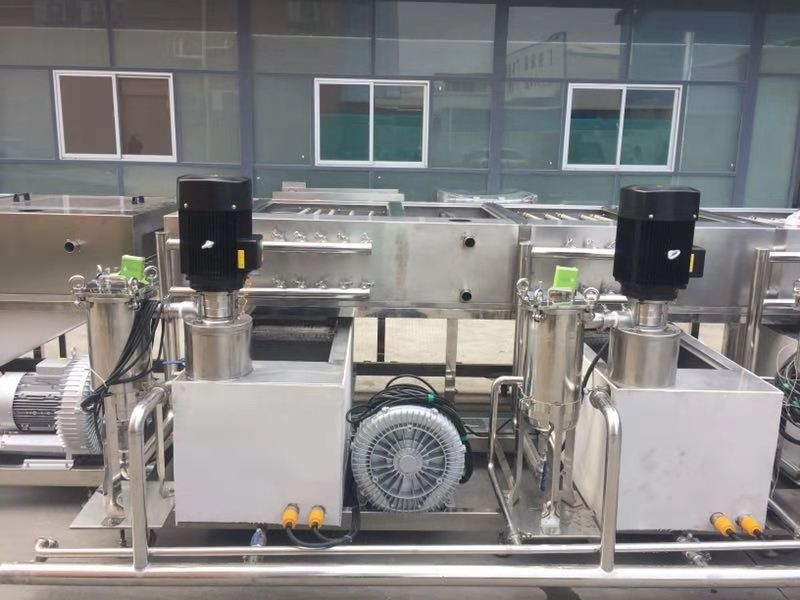

Heated Automatic Cleaning Machine Professional High Frequency Vibration Spray Cleaning

Heated Automatic Cleaning Machine Professional High Frequency Vibration Spray Cleaning

<sup>One. Equipment name and quantity:
Equipment Name: Pass-through ultrasonic cleaner production line
Number of devices:
two. Equipment model: CCS-8240UPT
three. Equipment model definition: CCS—Dongguan Chengchengshan Automation Equipment Co., Ltd.
8 means: 8 functional segments;
UPT definition: U—with ultrasonic; P for spray cleaning; T for non-standard equipment;
4. Equipment use: It is used to clean and remove dirt and oil stains attached to the workpiece, and use water cleaning, cleaning agent and high pressure wind to remove dirt on the surface of the workpiece.
5. Equipment cleaning objects: aluminum products. Capacity: 7000 pieces / 8 hours / day
6. Equipment capacity: basic washing time and conveying speed are adjustable from 0.3 to 1.0 M/min, and the equipment is in accordance with 0.5M/min design.
Seven. Cleaning material size: part size specifications: a variety.
Eight. Cleaning process: (from right to left)
Feeding → Ultrasonic cleaning → High pressure fan cutting water → pure water spray cleaning → High pressure fan cutting water →
Spray cleaning→Pure water spray cleaning→ High pressure fan cutting water→Cooling→Unloading→Assisting manual water cutting</sup>

^{Design Features:
The equipment is specially treated for the following aspects in terms of the object to be cleaned and the cleaning agent used:
 The cleaning chamber is integrated with the liquid storage tank to quickly return water to avoid dirt and dirt.
 Special liquid level, misoperation sound and light alarm device
 Conveying net is made of stainless steel SUS304 material, which is effective in corrosion resistance and protects the workpiece from being scratched.
 LCD touch screen visual operation man-machine interface}
