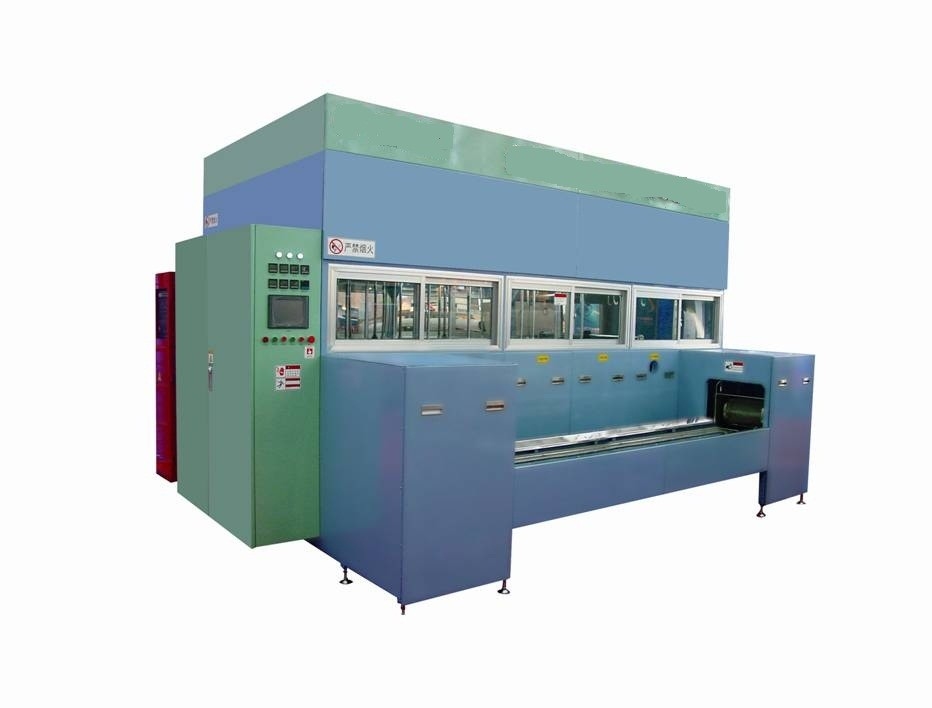

Heavy Duty Hydrocarbon Cleaning Machine Semi Automatic 316L Stainless Steel Tank

Inndustrial Hydrocarbon Cleaning Machine Semi Automatic 316L Stainless Steel Tank

• ^{the device name: semi-automatic hydrocarbon cleaning machine}
• ^{the equipment model: CCS-4048CHW}
• ^{equipment use: metal parts degreasing, decontamination, etc.}

^{Equipment mainframe dimensions:}

• Whole machine power / air source requirements:
• ^{Cleaning beat:}
• ^{Operation sequence: the whole machine goes left and right}
• ^{Fourth, cleaning medium: hydrocarbon cleaning machine}
• ^{Fifth, equipment cleaning process distribution:}

^{5.1 Process:
Feeding→ultrasonic cleaning→hydrocarbon degassing ultrasonic cleaning→steam rinsing→vacuum drying→discharge}

^{equipment structure
The cleaning system mainly consists of ultrasonic generator, ultrasonic transducer, cleaning tank, vacuum drying system, distillation recovery tank, circulation filtration system, water separation system, automatic temperature control heating system, site and frame, feeding and discharging system, light type Multi-arm manipulator, extraction system, fully enclosed enclosure, observation window and control system.}

 ^{device description
The cleaning machine is an automatic cleaning device. The cleaning process is controlled by a programmable logic controller (PLC). Four consecutive ultrasonic cleaning tanks made of high-quality imported 316L stainless steel, hydrogen degassing ultrasonic cleaning and steam cleaning are continuous. Working cleaning system. The operator puts the cleaning basket with the workpiece on the outer end of the feeding and conveying chain, that is, the loading and unloading end, the pneumatic door of the inlet and outlet is automatically opened, and the feeding and conveying chain automatically sends the cleaning basket to the inner end, that is, the loading and unloading station. At the same time, the pneumatic door of the inlet and outlet is automatically closed, and the multi-arm robot sends the cleaning basket to the ultrasonic rough washing tank for preliminary cleaning, and then sends the cleaning basket to each process step in turn, and the workpiece is subjected to multi-stage cleaning treatment and vacuum drying. The multi-arm manipulator then returns the cleaning basket to the inner end of the infeed and discharge conveyor chain, that is, the loading and unloading station, and the pneumatic door of the inlet and outlet ports is automatically opened, and the feeding and conveying chain automatically sends the cleaning basket to the outer end, that is, the loading and unloading end. The pneumatic door of the inlet and outlet is automatically closed, the operator takes the cleaning basket from the loading and unloading end, and then takes the cleaned workpiece out of the cleaning basket to complete a cleaning process.}
