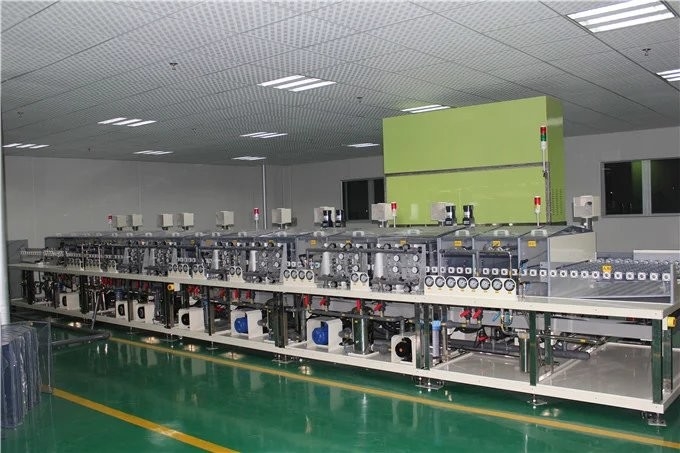

High Pressure SMT Stencil Cleaner , SMT Pressure Washer Easy Operation With Feed Section

High Pressure SMT Stencil Cleaner , SMT Pressure Washer Easy Operation With Feed Section

^{(1) Be sure to pay attention to first open the blower and then open the heater. Turn off the heater first, then turn off the blower.
(2) When the thickness of the glass plate changes, the height of the wind knife must be adjusted first, otherwise it will cause damage.
(3) Before stopping the transmission of the motor, be sure to lower the speed regulator to zero.
(4) There is an emergency stop button on the console, which can be used in case of emergency.
(5) The glass must be placed within the limit of the feed section.
(6) When adding tap water to the washing water tank, the water level should not exceed 250MM. When the water level is lower than 200MM, water should be added in time.
It is very important to carry out daily maintenance and maintenance of the machine. Usually, you should observe the moving parts of the machine, the waterway system, the airway system, and the electrical system. If there is an emergency, stop the vehicle immediately.}

Four Tank Hydrocarbon Cleaning Machine 800kg Industrial Application V Groove Desing Slot

^{1. Ultrasonic cleaning (first tank):
Effective size of inner groove: about 500×400×400mm
The structure of the tank body: The material of the tank body is made of high quality imported SUS316L and 2mm stainless steel plate. The bottom of the tank is provided with a drain valve, and the bottom is equipped with an input type ultrasonic vibration plate. The bottom of the shock plate is provided with a detachable stainless steel filter net, an external stainless steel float type liquid level gauge, an automatic liquid level alarm system, and an overflow port at the rear. Design a V-groove for each slot. It is equipped with a flanged slag port for easy cleaning of excess impurities. It is equipped with a circulation system to effectively keep the solvent evenly circulated.}

^{Ultrasonic system: It consists of ultrasonic generator, transducer, cable and so on.}

^{Ultrasonic generator: The ultrasonic generator adopts Chengchengshan self-developing and has a long service life. With overload protection, automatic tracking of liquid level frequency, full digital sweeping and other functions. The power conversion efficiency can reach over 95%, and the power output is stable and reliable.}

<sup>Transducer:
1. Transducer power: 50W/piece; transducer frequency: 28KHz.
2. Adopting the "Bundo" wafer transducer imported from Japan;
3. Introduction of transducer bonding process: The bonding surface of the transducer is first sandblasted before bonding, and then the screw is planted by the seeding machine; thus the transducer is glued with special adhesive when bonding. It is then tightened with screws to effectively ensure that the transducer does not fall off during long hours of operation.</sup>

^{Cable: The high frequency electrical signal of the ultrasonic generator is transmitted to the ultrasonic transducer through the cable. (The cable length can be adjusted according to the actual situation).}

^{2. Hydrocarbon degassing ultrasonic cleaning (second tank)}

^{Effective size of inner groove: 500*400*400mm}

^{The structure of the tank body: The material of the tank body is made of high quality imported SUS316L and 2mm stainless steel plate. The bottom of the tank is provided with a drain valve, and the bottom is equipped with an input type ultrasonic vibration plate. The bottom of the shock plate is provided with a detachable stainless steel filter net, an external stainless steel float type liquid level gauge, an automatic liquid level alarm system, and an overflow port at the rear. Design a V-groove for each slot. It is equipped with a flanged slag port for easy cleaning of excess impurities. It is equipped with a circulation system to effectively keep the solvent evenly circulated.}

^{Ultrasonic system: It consists of ultrasonic generator, transducer, cable and so on.}

^{Ultrasonic generator: The ultrasonic generator adopts Chengchengshan self-developing and has a long service life. With overload protection, automatic tracking of liquid level frequency, full digital sweeping and other functions. The power conversion efficiency can reach over 95%, and the power output is stable and reliable}

^Transducer:

<sup>1, the power of the transducer: 50W / piece; the frequency of the transducer: 40KHz.
2. Adopting the "Bundo" wafer transducer imported from Japan;
3. Introduction of transducer bonding process: The bonding surface of the transducer is first sandblasted before bonding, and then the screw is planted by the seeding machine; thus the transducer is glued with special adhesive when bonding. It is then tightened with screws to effectively ensure that the transducer does not fall off during long hours of operation.</sup>

^{Cable: The high frequency electrical signal of the ultrasonic generator is transmitted to the ultrasonic transducer through the cable. (The cable length can be adjusted according to the actual situation).
Circulating filtration system: It consists of explosion-proof pump, pressure gauge and stainless steel bag filter. The cleaning liquid passes through (reservoir → Y partition → circulation pump → filter → vacuum degasser → liquid storage tank) to form a self-circulation, and the impurities in the cleaning liquid are filtered out.}

^{The flow pump and the strength of the lift of the circulating pump ensure that the suspended dust in the cleaning fluid is taken away, and the filtration precision is 10 μm (can be adjusted according to the specific conditions).}

^{Vacuum degasser: flow: 8m3 / h}

^{Heating control system: thermocouple temperature measurement, digital display temperature controller, temperature control range: room temperature 1~100 °C adjustable, can be locked.
Low liquid level protection system: When the liquid level of the cleaning tank is lower than the set value, the float type liquid level control touches the floating switch, signals and cuts off the heating and circulating pump power of the tank.}

^{Cleaning solution: hydrocarbon washing agent.
Other technical requirements: the tank body is covered with insulation cotton, and the slag mouth, overflow port and liquid discharge port are provided.}

^{3. Steam cleaning (third process)
Effective space size: 500*400*400mm
Tank structure: The tank material is made of high quality imported SUS316L and 5mm stainless steel.
Distillation recovery system:}

^{Lubricate each lubrication point in time.
(2) Maintenance of the waterway system
The water used in the cleaning section is used for recycling. The water in the water tank should be replaced every day to ensure the clean water is cleaned, and the water tank and filter device are cleaned once a month. The water spray can be monitored through the observation hole on the cleaning section cover. If there is any blockage, stop the pump to open the cover, remove the water spray nozzle, and clean the installation after cleaning.
(3) Maintenance of the shunt system
Check the operation of the blower regularly, stop it immediately when there is abnormal sound, and report it to the maintenance department for inspection. Clean the filter grille of the air inlet every two months, and keep the blower room clean during normal times to prevent dust from being sucked into the air path and contaminating the glass.
(4) Waterway system
The waterway system is shown in Figure 3. It consists of two sets of water tanks and four sets of circulating water systems. The detergent tank should use a neutral glass cleaner with a pH of 7 and the last glass rinse should use deionized water. The quality of the water directly affects the surface cleanliness of the rear glass. The temperature of the washing liquid is generally controlled at 30 to 60 degrees (the water temperature heating control device is provided by the user).
(5) Wind path system
As shown in Fig. 4, the compressed air from the blower is separately sent to the upper and lower cold air knives and the distance between the upper and lower hot air knives and the glass plane can be adjusted. When changing the thickness of the glass, it is necessary to adjust this. gap.
(6) Installation and adjustment
1 The site conditions should have 380V AC power supply, industrial tap water source and drainage ditch.
2 As shown in Figure 7, correctly place the feed section rack, the cleaning section rack, the drying section rack, the discharge section rack, the control cabinet, and the ventilation cabinet.}
