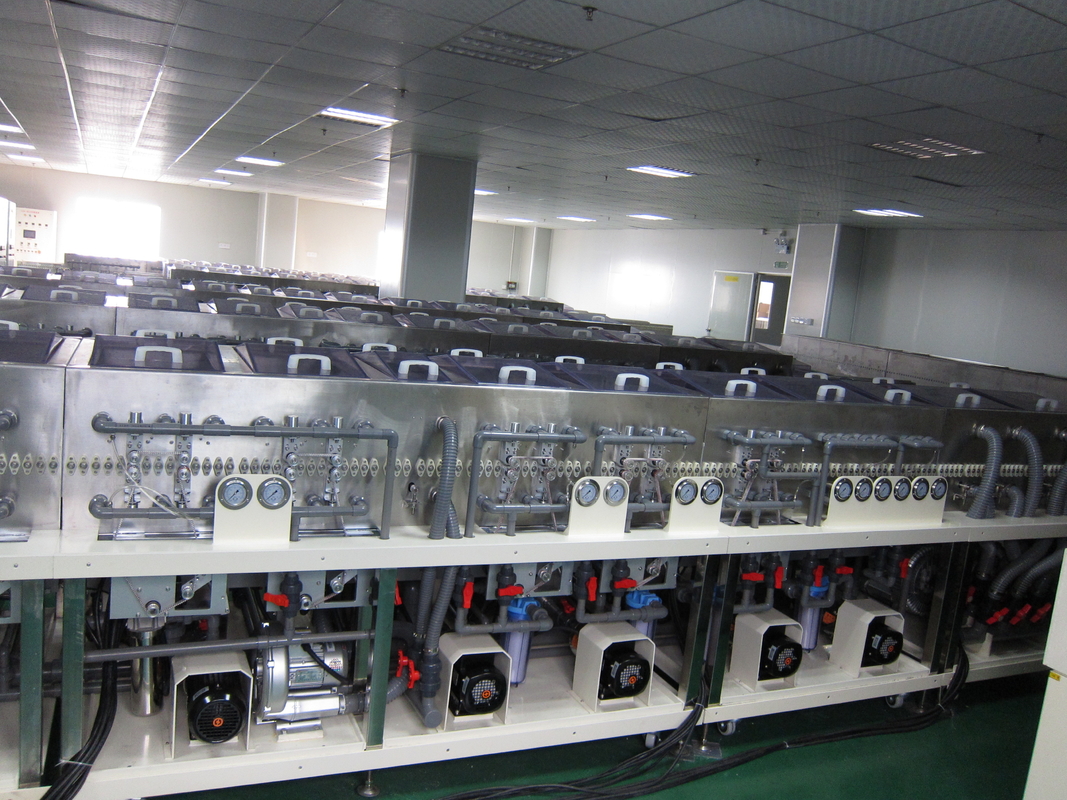

HS-ITO500 Industrial Ultrasound Equipment Coating Front Glass Washer 35KW Power

CCS-ITO500 Industrial Ultrasound Equipment Coating Front Glass Washer 35KW Power

First, the device name and model
1.1 Equipment Name: Flat Glass Washer
1.2 Equipment Model: CCS-ITO500 Coating Front Glass Washer
Second, equipment use
2.1 Cleaning and drying of the glass surface
Third, equipment production (cleaning) ability
3.1 Workpiece size: MIN: 75mmX50mm MAX: 400mmX500mm
3.2 conveying speed: 2.5m / min (1 ~ 6m / min adjustable)
3.3 substrate thickness: 0.2 ~ 2mm

Fourth, production (cleaning) quality standards
4.1, there are no particles above 1um on the surface of the workpiece, and particles below 1um are less than 1/cm2
4.2, no stains, water marks, scratches on the glass surface after cleaning
4.3, no cards, laminations in the glass cleaning process
V. Process flow and parameters
5.1 Process
Feeding section→pre-spraying→wind cutting1→washing roller brush cleaning 1+2→wind cutting 2→pure water roller brush cleaning 1+2→medium pressure spray washing→BJ cleaning→DI water spray washing→ DI water washing → two sets of air knife cutting water → two sets of hot air drying → discharge section + static elimination device
5.2 Equipment design: workpiece left to right
Sixth, equipment parameters and technical requirements
6.1 Equipment size and materials
6.1.1 Equipment body size: (L) 7650 × (W) 1500 × (H) 1200mm slight difference in manufacturing
6.1.2 Body material: Made of 304 stainless steel plate &=4mm material.
6.1.3 Rack material: SUS304 steel square pass 50X50X2
6.1.4 Water tank material: "South Asia" transparent / ivory PVC board & = 10
6.1.5 Shell door panel: "South Asia" transparent / ivory PVC board & = 6
6.1.6 Upper cover: "South Asia" transparent PVC board &=6
6.2 Equipment power requirements
6.2.1 Power supply: 380VAC±10V/50Hz
6.2.2 Total power consumption of the whole machine: 35KW
6.2.3 Water consumption: 20～30L/Min (15MW or more pure water)
6.2.4 Air consumption: 600L/min Pressure: 0.4Mpa
6.2.5 Total inlet pipe: UPVC 1”
6.2.6 Total drain: UPVC 2”
6.2.7 Spray pipe: UPVC 3/4”
6.3 Overall description of the device
6.3.1 Equipment structure
The cleaning machine is mainly composed of a spraying system, a roller brushing system, a BJ system, an air knife drying system, a circulation filtering system, an automatic temperature control heating system, a liquid level automatic control and an automatic liquid refilling system, a rack control panel and a control system.
6.4 Description of the main components of the equipment

6.4.1 Transfer section
※ Substrate transfer method: roller and rubber roller transfer diameter φ26mm
※ Adjustable transmission speed range: 1~6m/min
※ Transmission speed adjustment mode: digital display inverter or knob inverter adjustment
※ T ransmission speed display: digital display
※ Drive position: The transmission system is isolated from the sprinkler system (external drive of the tank)
※ Transfer shaft spacing: 30mm, the brush is 65mm.

6.4.2 Feed section
※ Feeding section length: L=490mm
※ Configuration: Sensor Drive system: CPG motor: 1/2P 3∮380V.
