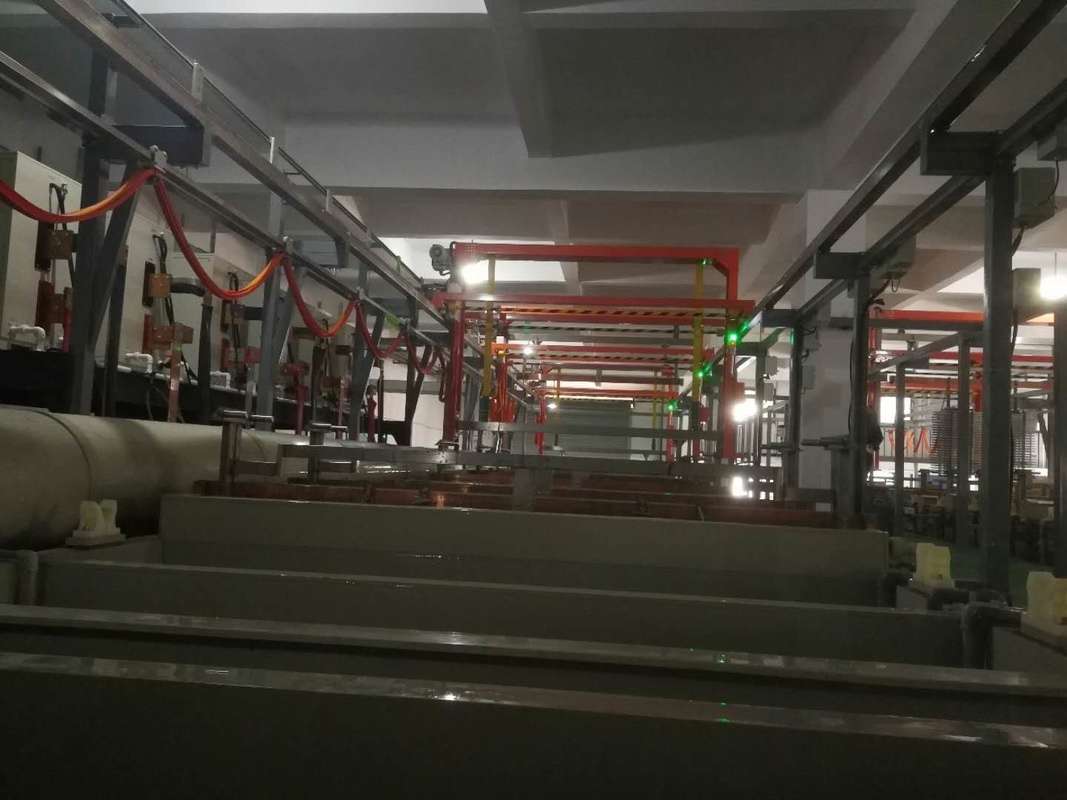

^{Anodizing equipment gantry single hook type driving introduction}

^{1 It adopts the gantry single hook middle rail type driving, which is safe, stable and reliable.}

^{2 Driven by worm gear and worm gear brake motor, the positioning accuracy is within ±10mm, and the whole set of equipment can withstand strong acid and alkali fog corrosion.}

^{3 The whole production line adopts 4 sets of driving, the lifting weight is 200-250kg, the horizontal running of the driving can be frequency-controlled in the range of 4~40m/min, and the lifting speed can be adjusted in the range of 7~12m/min. .}

^{4 The vehicle has automatic, manual and inching switching functions, and the three states are interlocked.}

^{5 The vehicle can accurately perform positioning, horizontal and vertical operations in accordance with the process requirements.}

^{6 The whole vehicle is made of high-quality SS stainless steel plate, which is assembled and polished, sprayed and processed.}

^{7 Adopting polyurethane walking wheel, high-strength lifting sling lifting, stable horizontal and vertical running, low vibration, low noise, convenient maintenance and adjustment.}

^{8 The vehicle is equipped with sound and light alarm devices and limit devices to ensure safe operation.}

^{9 Manually set the manual button and elastic collision protection for driving various sports.
10 driving can automatically identify a variety of errors, to achieve a variety of safety self-locking, up and down limit protection, collision between different vehicles, collision action stacking, anti-backup, motor overcurrent missing and other multiple protection, complete and reliable, once found fault The system can quickly stop the action and make an audible and visual alarm.}

^{11 Each vehicle is equipped with one manual operation box. The following control functions (start, stop, manual four-way operation switch) are set on the operation panel, limit switch, manual, inching, semi-automatic input change switch, operation indicator, etc.}

^{12 The parking stop sensor adopts the Japanese-made proximity switch, and the limit switch adopts the imported high-quality products. The crane horizontal stop position adopts the absolute position stop position, there will be no accident due to the misplacement, and the horizontal operation warning light is set.}

^{13 The horizontal running of the vehicle adopts 1HP Japan Sumitomo worm gear reducer brake motor, working voltage AC380V, one set on each train, with strong sealing and steel, to ensure safe, stable and continuous work.}

^{14 vertical running of the vehicle adopts 2HP Japan Sumitomo worm gear reducer brake motor, working voltage AC380V, one set on each train, with strong sealing and steel, to ensure safe, stable and continuous work.}
