NTK Transducer Ultrasonic Vibration Plate HS-1042NS 600*500*440mm Inner Groove

^{Industrial Ultrasonic Vibration Plate , Power Plate Board Submersilble Immersible}

^{First, the device name: ultrasonic cleaning machine shock plate (including ultrasonic generator)}

^{Second, the equipment model: CCS-1042NS}

^{Third, cleaning media: municipal water or customer choice}

^{Fourth, the main technical parameters:}

^{4.1 Basic principles and characteristics of ultrasonic cleaning
The super-audio electrical signal generated by the ultrasonic generator above 28 kHz is converted into mechanical oscillation of the same frequency by the piezoelectric inverse effect of the transducer, and is radiated in the cleaning liquid in the form of super-audio longitudinal waves. Due to the alternating positive and negative pressures of the super-audio longitudinal wave propagation, numerous tiny bubbles of more than 1000 atmospheres are generated and blasted at any time to form a fine local high-pressure bombardment on the surface of the cleaning object, so that the dirt on the surface and the gap of the object is rapidly peeled off. This is the "cavitation effect" unique to ultrasonic cleaning.}

^{4.2. Ultrasound description

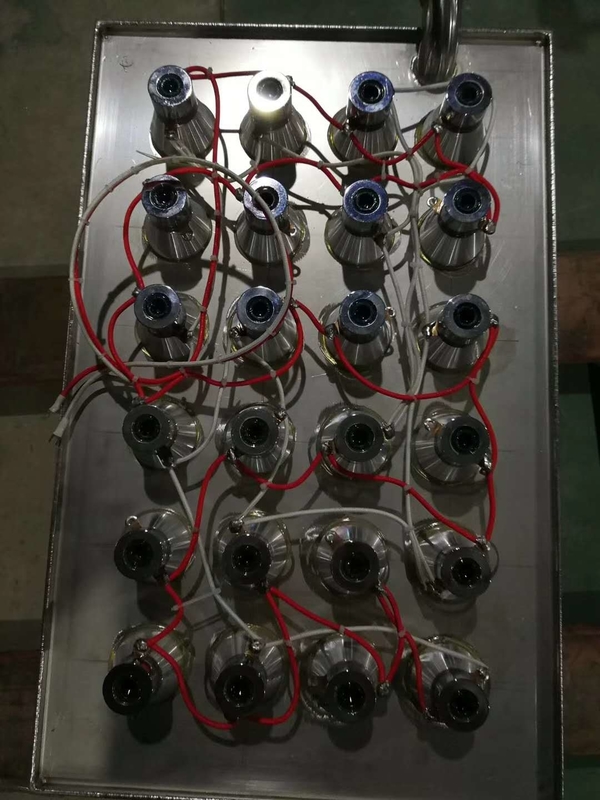

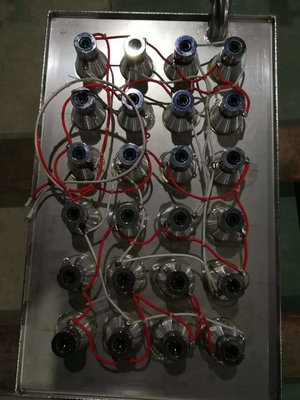

HS-1042NS shock plate size (L × W × H): 590 * 790 * 100mm size can be made according to customer requirements. Shock plate is made of SUS304 2.0mm thick stainless steel plate, hard chrome plated surface, durable.}

^{4.3 HS-1042NS seismic plate ultrasonic power is 2520W, the number of vibrators is 42, ultrasonic frequency: 28KHZ, Japan NTK transducer chip, domestic assembly, transducer and vibration surface bonding is firm and reliable, using high temperature glue paste to ensure Does not fall off.}

<sup>1. The ultrasonic vibration plate is composed of two parts: the vibration plate and the ultrasonic generator. When the standard type ultrasonic cleaning machine is not suitable for a specific working environment, in addition to special specifications can be customized. It can also be converted into an ultrasonic cleaning machine by using the input shock plate device, thereby saving equipment cost and achieving cleaning effect.
2. The shock plate is made of an all-stainless steel structure that is resistant to alkali and acid, and the surface of the shock plate is plated with hard chrome. Ultrasonic transducers are made of high-quality, high-performance products with high electroacoustic conversion efficiency.
3. The split structure is adopted, and the high-frequency wire connection with the socket is used between the vibration plate and the ultrasonic generator, and the use and maintenance are convenient.
4. The installation arrangement is flexible, and the ultrasonic radiation surface can be arranged on the bottom surface, the side surface or the top surface of the cleaning tank as needed.
5. Ultrasonic vibration plate can be customized according to customer requirements. Ultrasonic vibration plate is suitable for cleaning plating parts, watch parts, hardware parts, polyester filters, semiconductor wafers, tools, lenses, frames, jewelry, jewelry, glass, utensils. And other industries, the application is wider.</sup>
