Pass Automatic Cleaning Machine , AF Coating Cleaning Machine High Speed

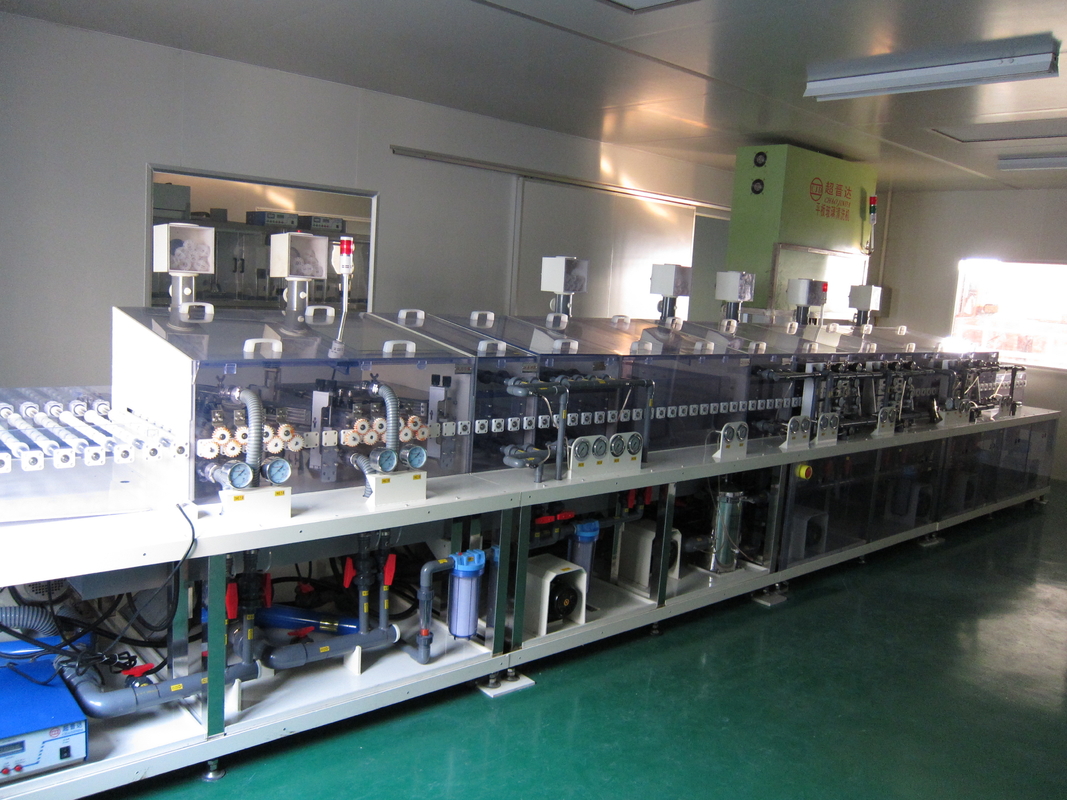

1: AF coating cleaning machine
Main role: cleaning glass AF surface coating spatter residue, dust and fingerprint printing;
Process flow:
Feed + plasma (added process, the role is to remove the residue of the drug, the agent uses neutral alkaline) ---> lotion brushing 1---> lotion brushing 2---> lotion brushing 3--> Wind cut-->Pure water roller brush 1-->Pure water roller brush 2-->Medium pressure spray-->Pure water wash-->Four sets of air knife dry-->Discharge (except static electricity)
The length of the machine: about 7.5 meters, using electric power: 36KW

2: After silk screen cleaning machine
Main function: cleaning white spots on the surface of the glass, dirt, stains and scratches with blades are not in the cleaning range
Process flow:
Pure medicine soak + feed (2-3 minutes) ---> pure medicine roller brush ---> wind cut ---> lotion roller brush wash 1---> lotion roller brush wash 2---> wind cut --->Pure water roller brush 1--->Pure water roller brush 2--->Pure water roller brush 3--->Medium pressure--->Pure water wash--->Air cut dry---> Discharge (except static electricity)
The length of the machine: about 8.2 meters, using electric power: 42KW, mining
