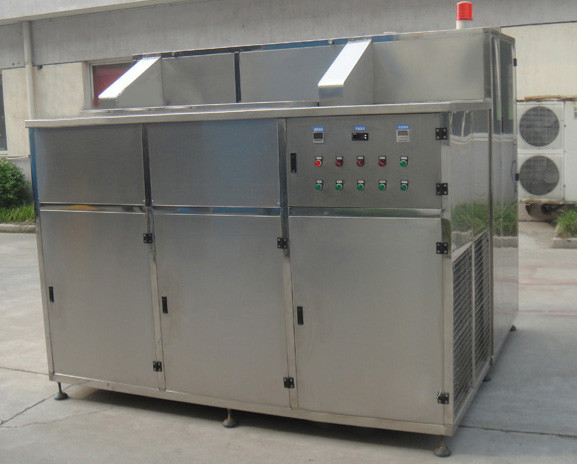

1. Equipment Name: Three-tank ultrasonic gas phase cleaning machine

2. Equipment model: CCS-3018R

3. Cleaning object: precision hardware

4. Cleaning requirements: remove the rosin from the circuit board.

5. Cleaning medium: organic solution, such as washing water. (specific gravity is greater than water)

■ Built-in condensing system to prevent solvent evaporation.
■ A quick freeze drying system is provided to allow quick cleaning of the workpiece or entry into the next process.
■ With solvent filtration and recovery system to reduce production costs.
■ Attached solvent and cooked automatic temperature control device, temperature control range 30-1100C.
■ All stainless steel structure, acid and alkali resistant, beautiful and durable.

Scope of application: It is suitable for cleaning rosin on electronic parts and circuit boards, grease of precision mechanical parts, dirt of watch case, polishing wax of metal products, etc. It has the advantage of fast net drying and is suitable for continuous production.

One: The basic principle and characteristics of ultrasonic cleaning
The 28 kHz super-audio electrical signal generated by the ultrasonic generator is converted into a mechanical oscillation of the same frequency by the piezoelectric effect of the transducer and radiated in the cleaning liquid in the form of a super-audio mechanical wave. Due to the alternating action of the positive pressure zone and the negative pressure zone of the super-audio mechanical wave propagation, numerous tiny bubbles of more than 1000 atmospheres are generated and blasted at any time to form a fine local high-pressure bombardment on the surface of the cleaning object, so that the dirt on the surface of the object and the gap is rapid. Peeling, this is the "cavitation effect" unique to ultrasonic cleaning.

Two: inner groove size: 400 × 450 × 460mm (L × W × H)

• Configure ultrasonic vibration board, power: 1100W
• Number of ultrasonic vibrators: 22
• Ultrasonic frequency: 28KHZ
• Remove the effective water depth of the shock plate 360MM (the same below)
• Heating power: 3KW
• With automatic temperature control system, temperature control range: room temperature ~ 110 ° C
• With storage tank, heating power 4KW
