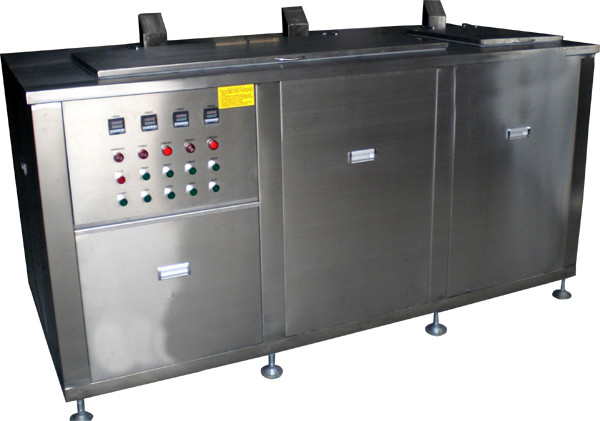

Precision hardware three-slot with recovery device ultrasonic cleaning machine

▲ Basic principles and characteristics of ultrasonic
The 28 kHz super-audio electrical signal generated by the ultrasonic generator is converted into a mechanical oscillation of the same frequency by the piezoelectric effect of the transducer and radiated in the cleaning liquid in the form of a super-audio mechanical wave. Due to the alternating action of the positive pressure zone and the negative pressure zone of the super-audio mechanical wave propagation, numerous tiny bubbles of more than 1000 atmospheres are generated and blasted at any time to form a fine local high-pressure bombardment on the surface of the cleaning object, so that the dirt on the surface of the object and the gap is rapid. Peeling, this is the "cavitation effect" unique to ultrasonic cleaning.
Ultrasonic cleaning tank introduction:
Effective size of cleaning tank (L×W×H): 400×280×450mm
Material: SUS304 stainless steel, thickness 2.0MM,
Ultrasonic: Ultrasonic uses bottom shock type, each transducer has a power of 50W, a total of 24 transducers, total power of 1200W; frequency 28KHZ, can be controlled separately, and has a current size indicator.
Heating power: 3KW
It has independent circulation filtration system, slagging device and automatic temperature control system with a filtration precision of 20μ.
The circulating filtration system consists of pipes, pumps, valves and other components, which can effectively filter the debris formed during the cleaning process.
Installation of stainless steel filters in a circulating filtration system:
This type of valve should generally be installed horizontally in the pipeline.
When installing and using, pay attention to the protection of the control box, sensor and transmission parts to prevent damage.
Connect the pipe according to the direction of the arrow on the stainless steel self-cleaning filter body
When adjusting the electric part, please note that the direction of rotation of the motor should be consistent with the direction of the mark.
Installation should be considered for easy access and a bypass pipe should be installed.
When installing, try to consider the sewage outlet at the bottom to facilitate the discharge of debris.
The sewage pipe is connected to the draining ditch, and the sewage pipe should not be too long.
