Device Description

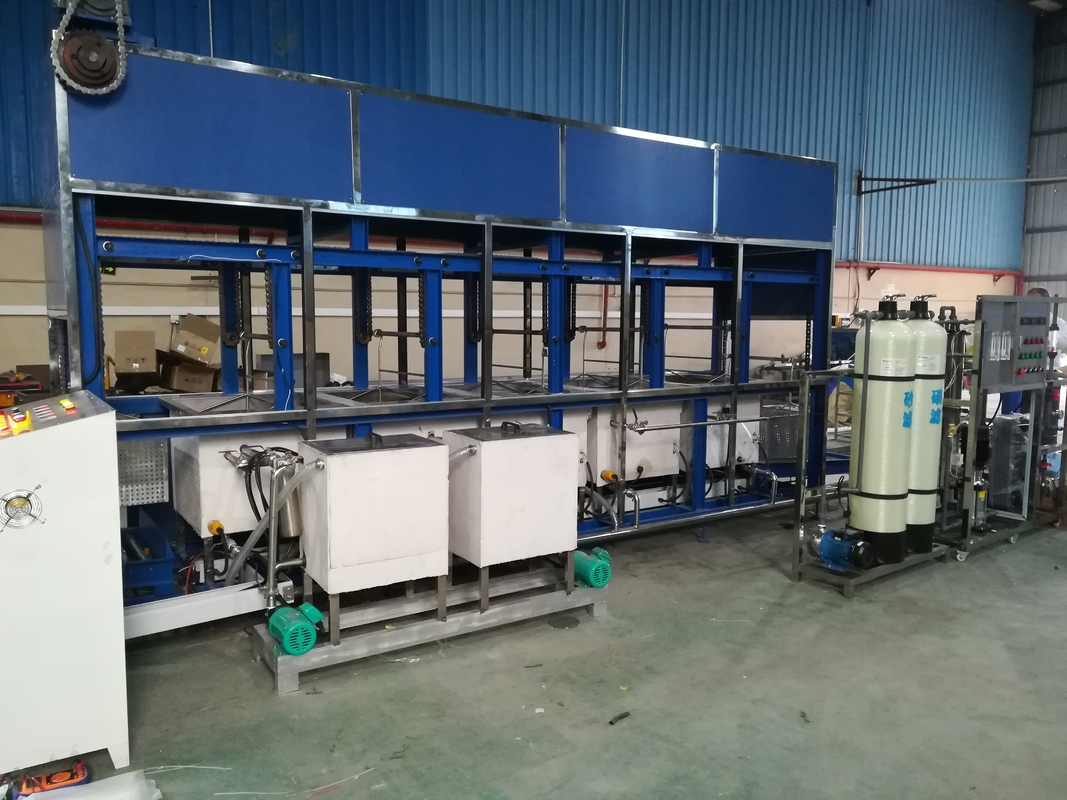

The washing machine is a fully automatic ultrasonic cleaning machine. The cleaning process is controlled by the PLC control system. The human-machine interface touch screen displays five continuous cleaning cleanings consisting of ultrasonic cleaning tanks, rinsing tanks and drying devices made of stainless steel. In the line, the operator puts the cleaning basket with the workpiece into the feeding table, and then the robot hand is sent to each process segment in turn, and the workpiece is subjected to a series of cleaning and drying. The specific structure is shown in the drawings and the following description.
The basic principle and characteristics of ultrasonic
The 40KHZ super-audio electrical signal generated by the ultrasonic generator is converted into mechanical oscillation of the same frequency by the piezoelectric effect of the transducer and radiated in the cleaning liquid in the form of super-audio mechanical waves. Due to the alternating action of the positive pressure zone and the negative pressure zone of the super-audio mechanical wave propagation, numerous tiny bubbles of more than 1000 atmospheres are generated and blasted at any time to form a fine local high-pressure bombardment on the surface of the cleaning object, so that the dirt on the surface of the object and the gap is rapid. Peeling, this is the "cavitation effect" unique to ultrasonic cleaning.
1. Main tank body:
(1) Effective inner groove size: 600×600×500L×W×H mm, effective height 400MM
(2) The tank body is made of SUS304 2.0mm stainless steel sheet.
(3) equipped with water valve, drain valve, sewage into the total drain;
(5) Cleaning medium: municipal water + degreasing powder
2. Ultrasound system:
(1) Ultrasonic frequency: 40KHZ;
(2) Ultrasonic power: 1800W
(3) Ultrasonic vibrator: 36 pieces, 50W/only, immersed ultrasonic vibration plate, sia plate thickness SUS 2.0MM stainless steel plate, mounted on the bottom of the tank, the core part of the vibrator adopts Japan "Ben Duo" brand chip, shock plate The surface is hard chrome-plated for durability.
3. Heating system:
(1) Heating by means of a heating pipe, installed on the side of the tank body,
(2) Heating power 6KW.
(3) The temperature controller brand adopts Omron brand, and the display mode: digital display.
