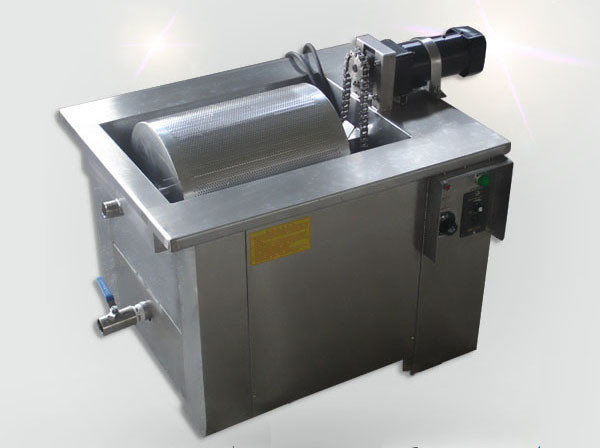

Rust Removal Automatic Cleaning Machine Hardware Dewaxing 800×350×600 Inner Groove

Rust Removal Automatic Cleaning Machine Hardware Dewaxing 800×350×600 Inner Groove

◆ Inner groove size: L×W×H (mm) 800×350×600
Dimensions: L × W × H (mm) 940 × 570 × 740

◆ Material: It is made of imported SUS304δ2.0mm stainless steel plate, and the vibration surface is made of SUS304δ2.5mm stainless steel plate.
The outer plate is made of SUS304δ1.0mm stainless steel plate. The rear-turning cylinder head is convenient for operation.

◆ Structure: The whole machine is equipped with 1〝 drainage ball valve at the bottom of the moving caster, and 48 ultrasonic vibrators at the bottom. The ultrasonic power is 2400W (power adjustable), frequency 28kHz, the whole machine is all stainless steel structure.

◆ Ultrasonic heating system: heating by heating tube, heating power 5KW, mechanical automatic constant temperature control 30~100°C adjustable.

◆ Electrical system: electrical components are imported high quality parts

◆ Ultrasonic generator:

The ultrasonic generator can monitor the operating frequency and power of the high-power ultrasonic system.
It can adjust various parameters in real time according to different requirements of users: such as power, amplitude, running time and so on.
Frequency fine-tuning: The frequency is adjusted so that the ultrasonic transducer always works at its optimum state, and the efficiency is maximized, and the adjustment range is 2%.
Auto-following: Once the device has been initially set up, it can be operated continuously without the need to adjust the generator.
Amplitude control: When the load changes during the operation of the transducer, the drive characteristics can be automatically adjusted to ensure a stable amplitude of the tool head.
System protection: When the system works in an unsuitable operating environment, the generator will stop working and display an alarm to protect the device from damage.
Amplitude adjustment: The amplitude can be increased or decreased instantaneously during the working process, and the amplitude setting range is 0%~100%.
Automatic frequency search: The working frequency of the tool head can be automatically determined and stored.
