Stainless Steel Industrial Ultrasonic Cleaner Automatic Grade Cleaning Agent Medium

^{Stainless Steel Industrial Ultrasonic Cleaner Automatic Grade Cleaning Agent Medium}

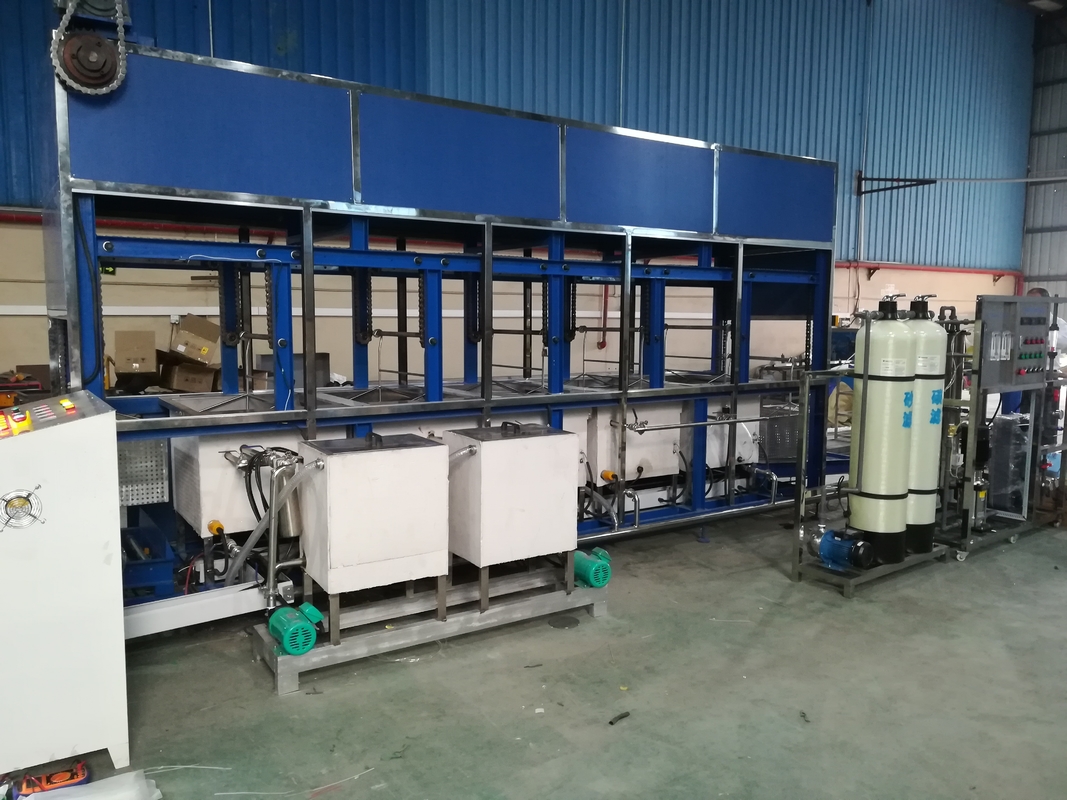

^{Automatic five-slot suspension chain washer description:
The washing machine is a fully automatic ultrasonic cleaning machine. The cleaning process is controlled by machinery. Five ultrasonic cleaning tanks made of stainless steel and a rinsing tank are used for a continuous working cleaning line. The operator puts the cleaning basket with the workpiece. After entering the designated position, the chain conveying system is sequentially sent to each process section to perform a series of cleaning on the workpiece, and after the material is cut, a cleaning process is completed. The specific structure is shown in the drawings and the following description.
The basic principle and characteristics of ultrasonic
The 28 kHz super-audio electrical signal generated by the ultrasonic generator is converted into a mechanical oscillation of the same frequency by the piezoelectric effect of the transducer and radiated in the cleaning liquid in the form of a super-audio mechanical wave. Due to the alternating action of the positive pressure zone and the negative pressure zone of the super-audio mechanical wave propagation, numerous tiny bubbles of more than 1000 atmospheres are generated and blasted at any time to form a fine local high-pressure bombardment on the surface of the cleaning object, so that the dirt on the surface and the gap of the object is rapidly Peeling, this is the "cavitation effect" unique to ultrasonic cleaning.}


<sup>Main technical parameters of the cleaning tank
1. Cleaning tank:
(1) Effective inner groove size: 650 × 570 × 570L × W × H mm,
(2) The tank body is made of SUS304 2.0mm stainless steel sheet.
(3) equipped with water valve, drain valve, sewage into the total drain;
(5) Cleaning medium: cleaning agent plus city water
2. Ultrasound system:
(1) Ultrasonic frequency: 28KHZ;
(2) Ultrasonic power: 1800W
(3) Ultrasonic vibrator: 36 pieces, 50W/only, immersed ultrasonic vibration plate, installed at the bottom of the tank body, the core component of the vibrator adopts Japanese “Bundo” brand chip;
3. Heating system:
(1) Heating by heating tube
(2) Heating power 6KW.</sup>
