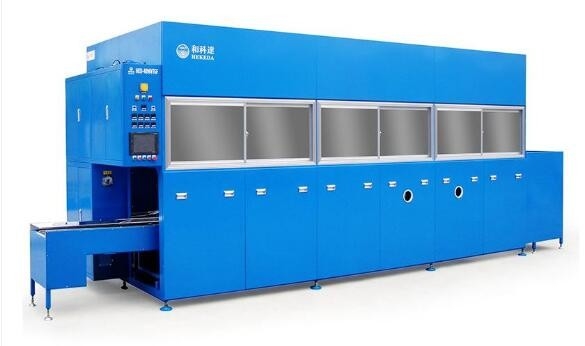

Steam Electric Hydrocarbon Cleaning Machine Automatic Temperature Control Lightweight

Four Tank Hydrocarbon Cleaning Machine 800kg Industrial Application V Groove Desing Slot

^{1. Ultrasonic cleaning (first tank):
Effective size of inner groove: about 500×400×400mm
The structure of the tank body: The material of the tank body is made of high quality imported SUS316L and 2mm stainless steel plate. The bottom of the tank is provided with a drain valve, and the bottom is equipped with an input type ultrasonic vibration plate. The bottom of the shock plate is provided with a detachable stainless steel filter net, an external stainless steel float type liquid level gauge, an automatic liquid level alarm system, and an overflow port at the rear. Design a V-groove for each slot. It is equipped with a flanged slag port for easy cleaning of excess impurities. It is equipped with a circulation system to effectively keep the solvent evenly circulated.}

^{Ultrasonic system: It consists of ultrasonic generator, transducer, cable and so on.}

^{Ultrasonic generator: The ultrasonic generator adopts Chengchengshan self-developing and has a long service life. With overload protection, automatic tracking of liquid level frequency, full digital sweeping and other functions. The power conversion efficiency can reach over 95%, and the power output is stable and reliable.}

<sup>Transducer:
1. Transducer power: 50W/piece; transducer frequency: 28KHz.
2. Adopting the "Bundo" wafer transducer imported from Japan;
3. Introduction of transducer bonding process: The bonding surface of the transducer is first sandblasted before bonding, and then the screw is planted by the seeding machine; thus the transducer is glued with special adhesive when bonding. It is then tightened with screws to effectively ensure that the transducer does not fall off during long hours of operation.</sup>

^{Cable: The high frequency electrical signal of the ultrasonic generator is transmitted to the ultrasonic transducer through the cable. (The cable length can be adjusted according to the actual situation).}

^{2. Hydrocarbon degassing ultrasonic cleaning (second tank)}

^{Effective size of inner groove: 500*400*400mm}

^{The structure of the tank body: The material of the tank body is made of high quality imported SUS316L and 2mm stainless steel plate. The bottom of the tank is provided with a drain valve, and the bottom is equipped with an input type ultrasonic vibration plate. The bottom of the shock plate is provided with a detachable stainless steel filter net, an external stainless steel float type liquid level gauge, an automatic liquid level alarm system, and an overflow port at the rear. Design a V-groove for each slot. It is equipped with a flanged slag port for easy cleaning of excess impurities. It is equipped with a circulation system to effectively keep the solvent evenly circulated.}

^{Ultrasonic system: It consists of ultrasonic generator, transducer, cable and so on.}

^{Ultrasonic generator: The ultrasonic generator adopts Chengchengshan self-developing and has a long service life. With overload protection, automatic tracking of liquid level frequency, full digital sweeping and other functions. The power conversion efficiency can reach over 95%, and the power output is stable and reliable}

^Transducer:

<sup>1, the power of the transducer: 50W / piece; the frequency of the transducer: 40KHz.
2. Adopting the "Bundo" wafer transducer imported from Japan;
3. Introduction of transducer bonding process: The bonding surface of the transducer is first sandblasted before bonding, and then the screw is planted by the seeding machine; thus the transducer is glued with special adhesive when bonding. It is then tightened with screws to effectively ensure that the transducer does not fall off during long hours of operation.</sup>

^{Cable: The high frequency electrical signal of the ultrasonic generator is transmitted to the ultrasonic transducer through the cable. (The cable length can be adjusted according to the actual situation).
Circulating filtration system: It consists of explosion-proof pump, pressure gauge and stainless steel bag filter. The cleaning liquid passes through (reservoir → Y partition → circulation pump → filter → vacuum degasser → liquid storage tank) to form a self-circulation, and the impurities in the cleaning liquid are filtered out.}

^{The flow pump and the strength of the lift of the circulating pump ensure that the suspended dust in the cleaning fluid is taken away, and the filtration precision is 10 μm (can be adjusted according to the specific conditions).}

^{Vacuum degasser: flow: 8m3 / h}

^{Heating control system: thermocouple temperature measurement, digital display temperature controller, temperature control range: room temperature 1~100 °C adjustable, can be locked.
Low liquid level protection system: When the liquid level of the cleaning tank is lower than the set value, the float type liquid level control touches the floating switch, signals and cuts off the heating and circulating pump power of the tank.}

^{Cleaning solution: hydrocarbon washing agent.
Other technical requirements: the tank body is covered with insulation cotton, and the slag mouth, overflow port and liquid discharge port are provided.}

^{3. Steam cleaning (third process)
Effective space size: 500*400*400mm
Tank structure: The tank material is made of high quality imported SUS316L and 5mm stainless steel.
Distillation recovery system:}
