SUS 306 Rotate Spray PCL Control Large Automatic Big Spare Parts Ultrasonic Cleaning

2019 China New Design SUS 306 Rotate Spray PCL Control Large Automatic High-quality Big Spare Parts Ultrasonic Cleaning Machine

Main technical parameters of the equipment:

u Power supply (user provided): 380VAC ± 10%, 3p5w, 50Hz

Washing machine rated electric power: about 120KW

Among them, the heating power is 42KW, the fan power is 22.5KW, the pump power is 23KW, the motor power is 1.5KW, and the ultrasonic power is about 12KW.

Normal operation power consumption is about 60~70KW

u Compressed air (user provided): 1′′, 0.4~0.6Mpa

u City water (user provided): 1′′, 0.25~0.3Mpa, ≤1.5t/h

u pure water (further equipped): ≤1T/h

u Wastewater discharge pipeline: 2′′

u Exhaust exhaust duct: 160mm duct

u Control cabinet environment requirements: air temperature 15 ~ 45 oC, relative humidity: <80%

u Equipment size: washing machine host: L10030×W2000×H1200(mm), subject to the final design master plan

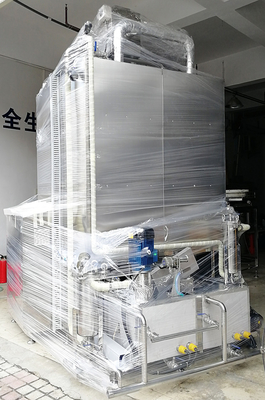

u In order to facilitate transportation and access, the equipment cleaning chamber is separately manufactured from the rear drive, the equipment is made in sections, and the silicone gasket is used between the segments and the segments.

This equipment customer supplementary requirements:

Additional requirements:

1. Warm up in advance, install timer, heating pipe: water storage tank 5KW*2=10KW, ultrasonic tank 3*4=12KW

2. Electric box material: SUS304

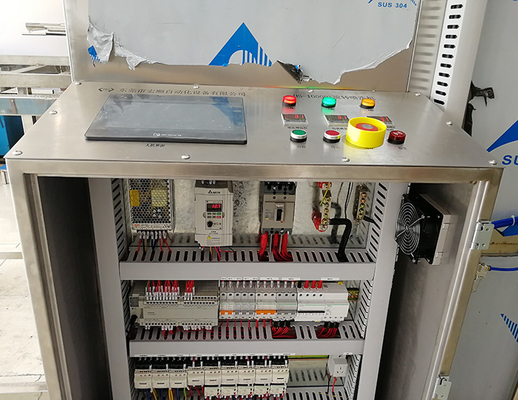

3. Control panel: touch screen, enter 3 layers of password: 1) parameter setting, 2) enter interface, 3) program control

4. Spray conveying speed: 0.5 m / sec.

5. There is an induction switch at the discharge end of the machine. When the workpiece is not removed in time, the conveyor belt will stop.

6. There is an exhaust duct above the washing machine.

7. Fault alarm system.

8. The edges and corners of the machine are round and smooth, and it is not easy to hurt your hands.
