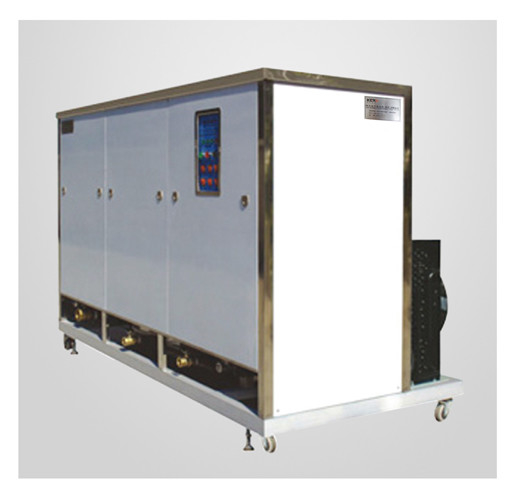

Three-slot precision copper tube ultrasonic cleaning machine

The cleaning machine is mainly composed of an ultrasonic generator, a transducer, a cleaning tank, a rinsing tank, a circulation filtering system, an automatic temperature control heating system, a freezing system, a frame, a control panel and the like.
The ultrasonic cleaning machine converts the oscillating signal higher than the frequency of 20KHz by the ultrasonic generator and then converts it into high-frequency mechanical vibration energy through the inverse piezoelectric effect of the ultrasonic transducer (shock) to clean the sound radiation in the liquid. The cleaning liquid molecules vibrate and produce numerous tiny holes and bubbles. And it forms and grows in the negative pressure zone along the direction of ultrasonic wave propagation, and instantaneously closes in the positive pressure zone to generate high-pressure blasting between thousands of atmospheres, forming numerous micro-high-pressure shock waves acting on the scale impurities of the pipeline and smashing it. . This is called the "cavitation effect" in ultrasonic cleaning. The copper tube ultrasonic cleaning machine works based on the "cavitation effect" technology. From the "cavitation effect", it is known that holes and bubbles are generated by applying high-frequency (ultrasonic frequency), high-intensity sound waves to a liquid. To this end, the composition of the copper tube ultrasonic cleaning machine must have the following two basic components: an ultrasonic generator for high-frequency, high-voltage, high-power electrical signals, and an electrical energy capable of converting electrical energy into mechanical energy (ie, piezoelectric inverse performance) and passing through the liquid. Pipeline high sound intensity transducer.
Copper pipes are also known as copper pipes. At present, the market capacity of copper pipe products is constantly increasing, and the application is more extensive. The copper pipes have strong and corrosion-resistant characteristics, and become the tap water pipes of modern contractors in all residential commercial houses. The first choice for hot and cold piping installation. The copper pipe is the best water supply pipe. There are a large number of heat exchangers and medium conveying pipes in the production site. The dirt in the metal pipes involves people's health problems. This has been the failure of many domestic and foreign industrial departments to solve the problem for many years. The problem, so the majority of businesses are very concerned about the issue of copper tube cleaning. Traditionally, chemical descaling, ion exchange resin anti-scaling, high-pressure water gun cleaning, etc. are used. Therefore, such equipment or devices are not faulty in repair rate, short in service life, and have poor practicality, and cannot solve the problem of cleaning the pipeline dirt, but because of this type The method is outdated and the results are not obvious. In recent years, with the development of semiconductor power device integrated control technology, a new modular and reliable copper tube ultrasonic cleaning machine has been applied in various fields.
Copper tube cleaning process: feeding - 1 slot ultrasonic cleaning - 2 tank ultrasonic rinsing - 3 steam bath washing - cutting
