One. Equipment name and quantity:

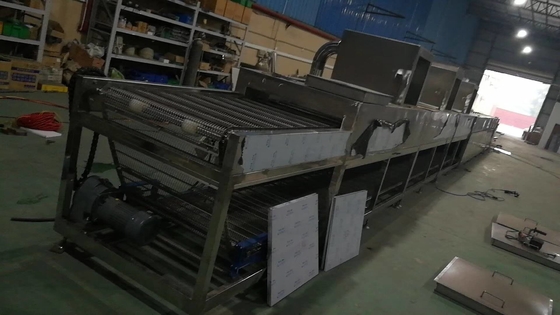

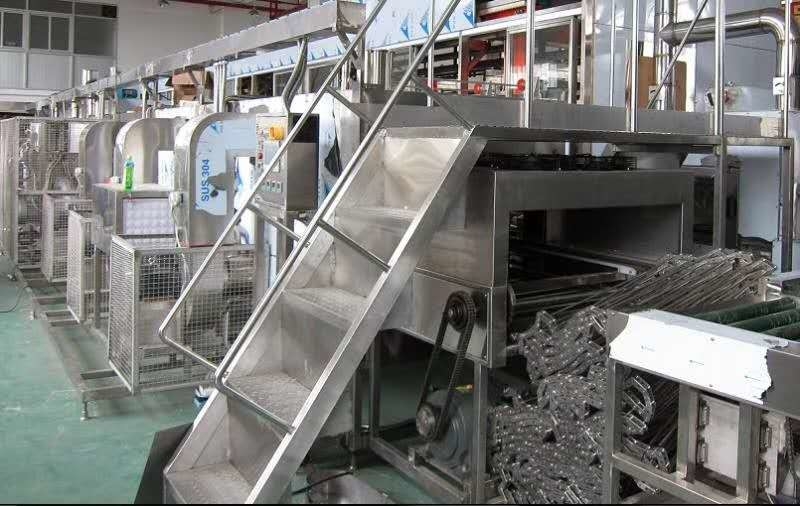

Equipment Name: Pass-through ultrasonic cleaning machine production line
Number of equipment:

two. Equipment model: CCS-8240UPT

three. Equipment model definition: CCS—Dongguan Chengchengshan Automation Equipment Co., Ltd.
8 means: 8 functional segments;
UPT definition: U - with ultrasonic; P for spray cleaning; T for non-standard equipment;

4. Uses of equipment: It is used to clean and remove dirt and oil stains attached to the workpiece, and use water cleaning, cleaning agent and high-pressure air to remove dirt on the surface of the workpiece.

5. Equipment cleaning objects: aluminum products. Capacity: 7,000 pieces / 8 hours / day
Equipment capacity: The basic washing time and conveying speed are adjustable from 0.3 to 1.0 M/min, and the equipment is in accordance with 0.5M/min design.

Seven. Cleaning material size: part size specifications: a variety.

Eight. Cleaning process: (from right to left)
Feeding → Ultrasonic cleaning → High pressure fan cutting water → pure water spray cleaning → High pressure fan cutting water → Spray cleaning → pure water spray cleaning → high pressure fan cutting water → cooling → cutting → auxiliary artificial water cutting

Design Features:
The equipment is specially treated in the following aspects for the object to be cleaned and the cleaning agent used: The cleaning chamber is integrated with the liquid storage tank to quickly return water to avoid dirt and dirt.

 Unique liquid level, misoperation sound and light alarm device
The conveying net is made of stainless steel SUS304 material, which is effective in corrosion resistance and protects the workpiece from being scratched.
 LCD touch screen visual operation man-machine interface
