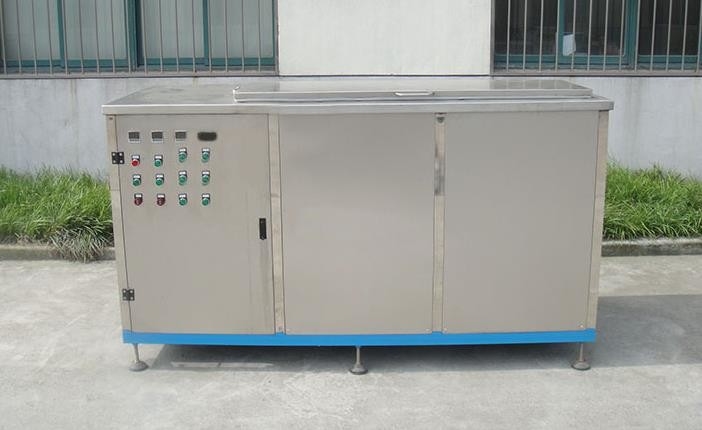

Three Cans Ultrasonic Cleaning Machine , Industrial Cleaning Machine Steam With Cold Tray

^{Three Cans Ultrasonic Cleaning Machine , Industrial Cleaning Machine Steam With Cold Tray}

^{1. Equipment description and ultrasonic introduction}

^{▲ device description
The washing machine is a three-slot ultrasonic cleaning machine. The cleaning process is controlled by machinery. Three ultrasonic cleaning tanks made of stainless steel and a rinsing tank are used for a continuous working cleaning line. The operator puts the cleaning basket with the workpiece. After entering the specified position, it is then sent to each process segment to perform a series of cleaning on the workpiece. After the material is cut, a cleaning process is completed. The specific structure is shown in the drawings and the following description.}

^{▲ Basic principles and characteristics of ultrasonic
The 28 kHz super-audio electrical signal generated by the ultrasonic generator is converted into a mechanical oscillation of the same frequency by the piezoelectric effect of the transducer and radiated in the cleaning liquid in the form of a super-audio mechanical wave. Due to the alternating action of the positive pressure zone and the negative pressure zone of the super-audio mechanical wave propagation, numerous tiny bubbles of more than 1000 atmospheres are generated and blasted at any time to form a fine local high-pressure bombardment on the surface of the cleaning object, so that the dirt on the surface and the gap of the object is rapidly Peeling, this is the "cavitation effect" unique to ultrasonic cleaning.}

• Ultrasonic cleaning tank introduction:
• ^{Effective size of cleaning tank (L×W×H): 400×280×450mm}
• ^{Production material: SUS304 stainless steel, thickness 2.0MM,}
• ^{Ultrasonic: Ultrasonic uses bottom shock type, each transducer has a power of 50W, a total of 24 transducers, total power of 1200W; frequency 28KHZ, can be controlled separately, and has a current size indicator.}
• ^{Heating power: 3KW}

^{It has independent circulation filtration system, slagging device and automatic temperature control system with a filtration precision of 20μ.}

^{The circulating filtration system consists of pipes, pumps, valves and other components, which can effectively filter the debris formed during the cleaning process.
It has automatic rehydration system, liquid level control system and automatic temperature control system.}
