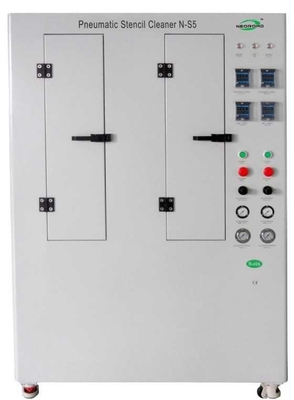

Quick Connector PCB Cleaning Machine 125mm Exhaust Port High Safety Well Ventilated

Quick Connector PCB Cleaning Machine 125mm Exhaust Port High Safety Well Ventilated

^{1. Installation place
To ensure safe production and to prevent possible damage to the equipment, the equipment should be installed in a location that meets the following environmental conditions:
★ away from fire and heat sources,
★Air is dry and well ventilated
★No dust, clean
★ flat and vibration-free ground}

^{2, installation accessories, energy requirements and precautions
★ The air source pressure is 0.4-0.6MPa, and the flow rate is 400-700L/Min.
★ The air source nozzle is ¢12mm, and a quick connector is required.
★ The top of the equipment is designed with a mm125mm exhaust port, which needs to be connected to the outside by an independent air duct. When taking over, it is required to turn less than two 90 degrees and the length is less than 6M. Otherwise, it is necessary to increase the forced exhaust fan (the automatic exhaust speed of this equipment is 3M/S).}

<sup>★ Note:
To ensure safe production, the customer must specifically ensure that the following safety measures are in place. The company does not assume any responsibility for safety caused by the accident:
1. Keep at least 3 meters away from live equipment, away from fire and heat.
2. The ground wire must be connected and grounded separately. It must not be connected to the ground wire of other live equipment.
3. The exhaust duct of this equipment should not be connected to any exhaust duct of equipment that can generate heat source (such as SMT reflow soldering, wave soldering, etc.). .
3, installation space
In order to facilitate equipment operation, maintenance, repair, replacement parts, please leave more than 1 meter space around the equipment.</sup>
