Fully Automatic SMT Stencil Cleaning Machine Four Stage Filtration Rotary Spray Design

^{Fully Automatic SMT Stencil Cleaning Machine Four Stage Filtration Rotary Spray Design}

^{One: main features of the product:
● Passed the EU CE certification, in line with the ISO14000 standard, and belongs to the ROHS standard products.
● No electricity at all, no security risks
● Four-stage filtration device to ensure the recycling of cleaning fluid to minimize cleaning fluid loss
● Safety interlocking device and complete machine are completely sealed to ensure production safety and environmental safety
● Special rotary spray design to ensure the overall high cleanliness of the steel mesh
● Automatically add drainage system to effectively reduce labor intensity and save working time
● Special small exhaust vent design to improve the working environment
● The cleaning pressure is adjustable to ensure the stability of the steel mesh tension
● Automatic cleaning frequency counting, convenient for timely replacement of filter element and cleaning solution
● Visual fluid design, convenient for timely filling, to ensure the normal operation of the machine
● Modular controller for easy maintenance
● Integrate global quality components to ensure high efficiency and reliability
● Compared with similar products, this series of products can be used almost semi-permanently.}

^{Second, the basic structure of the product}

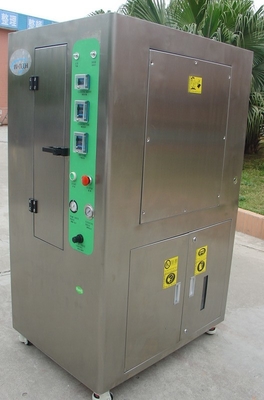

^{● Material The outer casing and the frame are made of 2.0mm thick steel plate and 40*40*2mm square pass powder. The internal structure is made of imported 2mm stainless steel SUS 304.

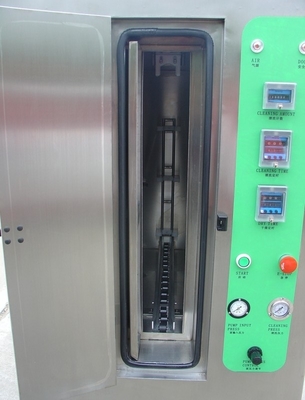

● The upper part is the cleaning studio and the operation panel.

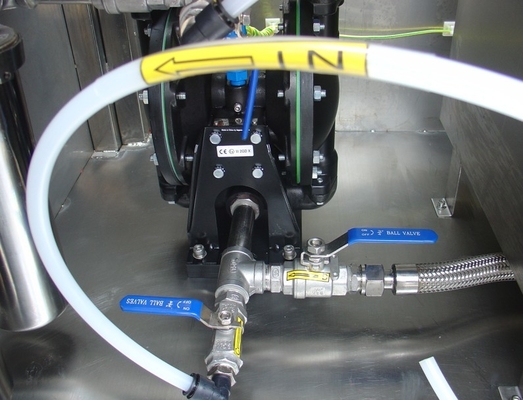

● The lower part is the liquid storage tank, pneumatic diaphragm pump and filtration system.
● The top is an exhaust system with a ¢125mm external exhaust vent}

^{Third, the main technical parameters of the product:}

^{Dimensions: length 650mmX width 1000mmX height 1650mm+30mm exhaust
 Air source pressure: 0.4-0.6MPa, air source nozzle diameter ¢12
Air consumption: 400-700L/min
 Cleaning minimum aperture: BGA: 0.1mm, qfp0.3mm, 0201, Flip chip/3mm printing steel mesh/semiconductor silica gel
Cleaning time: 3~5 minutes for solder paste and 4-6 minutes for red glue, there will be all differences due to cleaning products and cleanliness.
Drying time: 4-8 minutes
 Filtration method: four-stage filtration, one-stage filter box filter 20μm, filter impurities; secondary safety filter 10μm, filter impurities and cloth paper; three-stage filter filter 5μm, filter tin ball; four-stage filter filter 1μm, filter fine particles .
 Type of cleaning fluid; IPA, water based solvent, alcohol, acetone, etc. Chaojinda CPC-A1/CPC-A2 is most suitable for cleaning all kinds of solder paste and red glue.
 Single cleaning dosage: 0.12L/time, (water-based solvent 0.03/time) calculated by 736mmx736mmx40mm standard.
Storage tank capacity: up to 60L
 Operation mode: one button to complete cleaning and drying
 Adding liquid and draining method: semi-automatic
 Main consumables: Filter core (replace after cleaning 500 stencils, depending on cleaning frequency and actual conditions).
 Machine component configuration: all the world's top brand-name products
 Maximum steel mesh size: 736mmx736mmx40mm}
