^{1. Features: This equipment is a new generation of electroplated diamond wire saw production equipment developed by the company on the basis of imported equipment based on the mechanism of composite electroplating. Compared with similar products, it has simple operation, stable operation and fast sanding speed. , high production efficiency, environmental protection and energy saving;}

^{2, structure: the retracting line is welded with high-quality steel and precision machined; the frame of the trough part is made of SUS304 stainless steel, which has good anti-corrosion performance; the trough body is made of PP plate after precision machining and welding. The structure of the whole machine is reasonable, firm and reliable, and easy to use.}

^{3, the whole machine adopts PLC control, servo motor drive, which makes the equipment run smoothly; touch screen display and operation make the operation simple and convenient; support Ethernet network, can be connected to the control room for remote monitoring (optional), and equipped with domestic high-quality line The diameter detection system and the vision system perform on-line monitoring of the wire diameter and surface condition of the diamond wire, and can automatically take photos online and simultaneously save the production pictures and related data.}

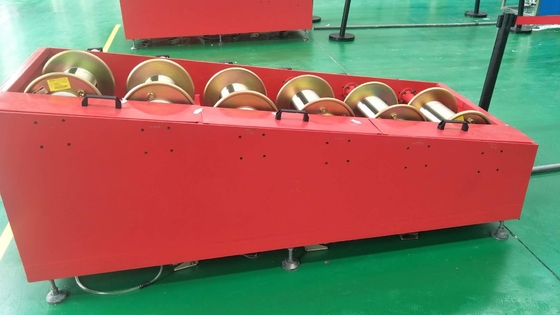

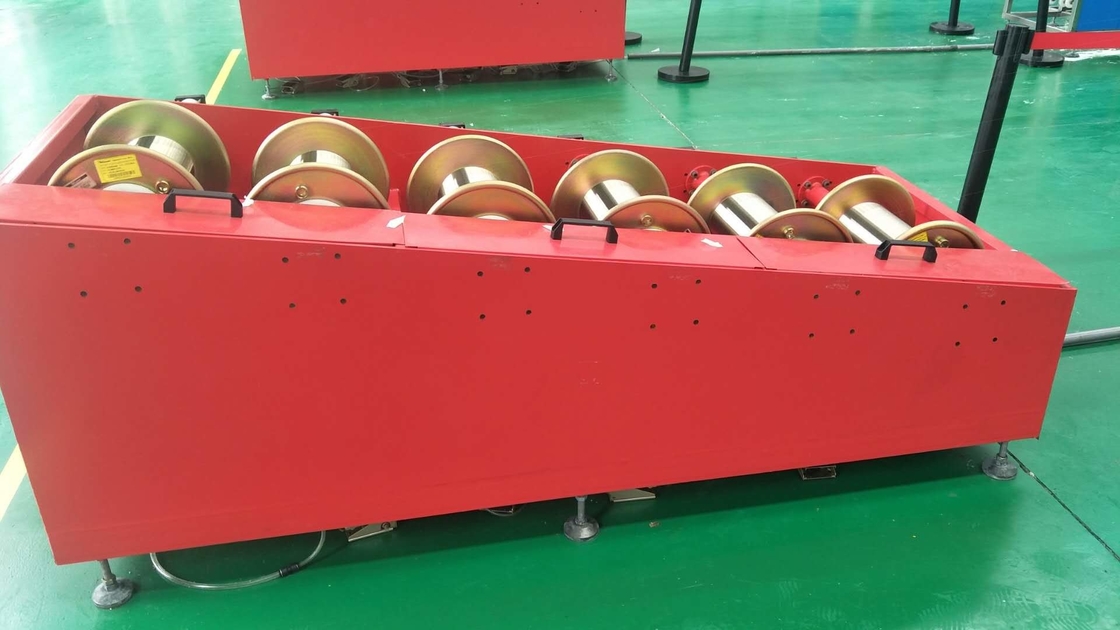

^{Take-up unit: Adopt horizontal active pay-off, driven by servo motor, sensitive response, adjustable tension, stable and reliable performance, pneumatic upper and lower disc, suitable for disc type: standard, can also be designed and configured according to user requirements.}

^{Pretreatment unit: The surface of the substrate is treated in a reasonable manner to improve the adhesion of the coating and reduce the defects of the coating.}

^{Upper sand unit: The diamond particles immediately adjacent to the surface of the substrate are initially consolidated on the underlying layer by electrodeposition of the metal. The sand unit on the equipment adopts a unique structural design, which greatly improves the sanding speed and sand uniformity.}

^{Sand-fixing unit: After removing the floating sand from the diamond wire which has been sanded, further electroplating is carried out to increase the holding power of the coating on the corundum and increase the twist of the corundum.}

^{Sand-fixing unit: Perform some necessary treatment on the surface of the reinforced diamond and coating to make it more suitable.}

^{Line-receiving unit: adopts horizontal disc-receiving method, which is driven by servo motor, sensitive to reaction, adjustable in tension, stable and reliable in performance, pneumatically up and down, and threaded by precision ball screw to make the cable line more smooth. Applicable disc type: standard, can also be designed according to the size of the disc provided by the customer.}
