Alloy Hard Anodizing Plant Manual Adjustable Convenient Operation For Auto Parts Industry

^{Alloy Hard Anodizing Plant Manual Adjustable Convenient Operation For Auto Parts Industry}

^{1. Equipment Name: Fully automatic anodizing production line}

^{2, equipment model: HS-3700YH line}

^{3. Equipment introduction:

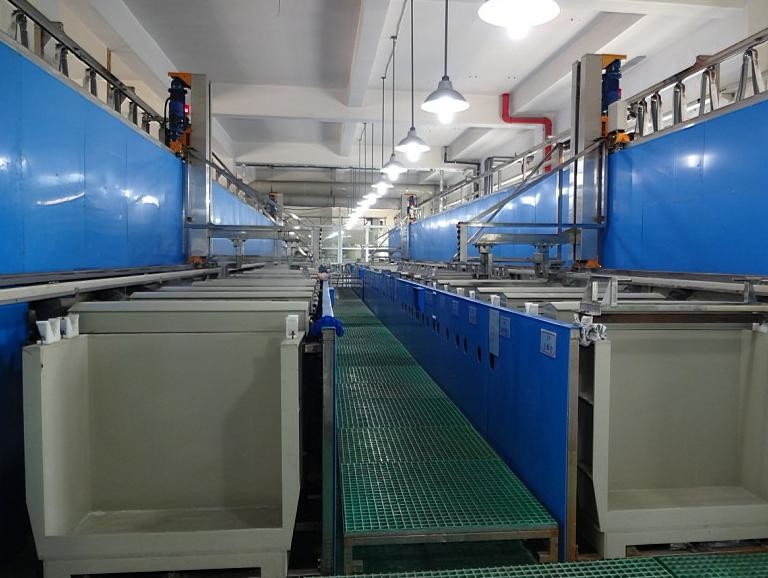

3-1 The production line is a production line consisting of three automatic control modes: semi-automatic and manual. It is designed according to the manufacturer's process production requirements, combined with practical operation specifications and Chengcheng's long experience in surface treatment equipment manufacturing. Linear gantry production line.}

^{3-2 The production line has 4 gantry-type single hooks. The PLC and touch screen  controautomaticallyl the horizontal and vertical operation of the train. The Panasonic inverter is used to realize variable frequency speed regulation, slow start, stop and fast operation, and horizontal operation. The speed of the crane is 4-40m/min, and the lifting speed of the hook is 7-12m/min. The operation control of the whole machine is concentrated in the total electric control cabinet. Each temperature control instrument, operation switch, voltmeter, etc. are all concentrated in the control room for convenient operation. And control, use the touch screen to achieve comprehensive monitoring, modify the process time and process at any time, and automatically record the process parameters in the oxidation process. To ensure product quality, improve product consistency, and facilitate the standard management of the workshop. The operation modes are fully automatic, semi-automatic and manual control, and can be switched between any work stations.}

^{3-3 The production cycle of the whole line will be adjusted according to the running speed of the line and the actual process of the production line.}

^{3-4 The whole line loading and unloading process is completed by manual operation. The loading position is fixed. After manual confirmation, the crane is lifted into each function slot to automatically complete the anodizing operation procedure, and finally the manual unloading.}

^{4, the basic composition of the equipment
4-1, surface treatment tank (functional tank);
4-2, the fuselage frame;
4-3. Electronic control system;
4-4, gantry single hook driving;
4-5, heating and cooling system;
4-6, air mixing system;
4-7, circulating filtration system;
4-8, oxidation power supply;
4-9, water supply and drainage pipeline system;}

^{5, basic design conditions (production line installation conditions)}
