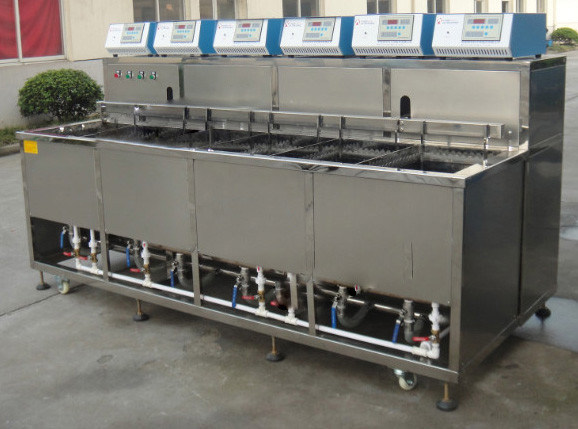

Acrylic Degassing Ultrasonic Cleaner Six Slot 380mm Effective Water Depth Convienient

Acrylic Degassing Ultrasonic Cleaner Six Slot 380mm Effective Water Depth Convienient

1. Cleaning tank:
(1) Inner groove size: 400 × 400 × 380 (L × W × H mm)
380mm refers to the effective water depth.
(2) The tank body is made of SUS316 2.0mm stainless steel sheet.
(3) An overflow device is provided, and the outflowing cleaning liquid enters the liquid storage tank, and is filtered again after being filtered by the ring filtration system;
(4) equipped with water valve, drain valve, sewage into the total drain;
(5) Heating: tube heating device or aluminum heating plate, heating power 3KW. Heating temperature 50-80 °C adjustable (in order to prevent heat loss, all heating parts of the outer groove are covered with insulation cotton, insulation cotton thickness 10mm), temperature control tolerance ± 3 ° C (the same below); single display thermostat with Japan "Omron" brand.
(6) Cleaning medium: municipal water + optical glass cleaning agent

2. Ultrasound system:
(1) Ultrasonic frequency: 28KHZ;
(2) Ultrasonic power: 900W
(3) Ultrasonic vibrators: 18 pieces, 50W/only, immersed ultrasonic vibration plate, installed at the bottom of the tank, using American "IIE" brand chip vibrator.

3. Storage tank:
(1) Inner groove size: 300 × 300 × 300 (L × W × Hmm)
(2) The tank body is made of SUS304 1.5mm stainless steel plate, and 10mm thick insulation cotton is attached;
(3) Set the low level protection alarm control system.
(4) Heating method: stainless steel tube heating
Heating power: 3KW

4. Filter circulation system:
(1) Stainless steel filter pump power: 370W, domestic “Southern” brand, flow: 30L/min, continuous filtration cycle;
(2) a set of stainless steel filters;
(3) Filtration accuracy: 50/20μ;

The second three or four slots: ultrasonic pure water rinsing tank
1. Cleaning tank:
(1) Effective inner groove size: 400 × 400 × 380 (L × W × H mm)
(2) The tank body is made of SUS304 2.0mm stainless steel sheet.
(3) equipped with water valve, drain valve, sewage into the total drain;
(4) Heating: tubular heating device, heating power 4KW.
(6) Cleaning medium: municipal water

2. Ultrasound system:
(1) Ultrasonic frequency: 40KHZ;
(2) Ultrasonic power: 900W
(3) Ultrasonic vibrators: 18 pieces, 50W/only, immersed ultrasonic vibration plate, installed at the bottom of the tank, using American "IIE" brand chip vibrator.
The pure water overflows from the fifth tank to the fourth tank, overflows to the third tank, and is discharged to the second tank.

Fifth slot: slow pull dewatering tank
1. Cleaning tank:
(1) Effective inner groove size: 400 × 400 × 280 (L × W × H mm)
(2) The tank body is made of SUS304 2.0mm stainless steel sheet.
(3) equipped with a water storage tank, heating power: 8KW
(4) Inlet valve, drain valve, sewage into the total drain;
(5) Cleaning medium: pure water
In order to ensure the cleaning effect and further drying, a set of slow pull lifting mechanism is designed, and the workpiece is slowly lifted in the cleaning tank, and the speed is adjustable.

Sixth slot: hot air drying tank
(1) Effective size: effective inner groove size: 400 × 400 × 280 (L × W × H mm)
(2) Heating power: 6KW, set with temperature controller, temperature control range: RT-150 degrees.
(3) Configure high-medium and inefficient filters with a filtration accuracy of 1000
(4) Configure hot air blower power: 0.75KW
