Equipment Name: Fully Automatic Ultrasonic Cleaning Vacuum Drying Line
II. Equipment Model: HS-5288AFG
3. Equipment type and meaning:
Model: HS-5288AFG
Meaning: (HS) refers to Hongshun Automation Equipment Co., Ltd. for short; (5) refers to a total of five functional slots of the whole machine.
(288) refers to a total of 288 ultrasonic transducers; (AFG) refers to non-standard automatic cleaning machine
IV. Application of equipment: for cleaning the surface of precision workpiece, drying workpiece, workpiece size: various specifications, see the physical object
Fifth, equipment capacity: every 5-10 minutes out of a basket, rhythm adjustable. The equipment can work two shifts a day continuously.
Function and cleanliness requirements:
1. Cleanness requirements: workpiece surface cleaning, itself can not be discolored and corroded. No oil, dust and other contaminants can be found on the surface of the workpiece after cleaning.
2. Surface treatment requirements: uniform, non-stain, stain;
3. Drying requirements: to achieve the surface drying of the workpiece after cleaning.
7. Transmission mode: automatic manipulator transmission.

8. Cleaning process and configuration table:
1: Process flow: Loading →1# ultrasonic cleaning agent →2 #ultrasonic cleaning of municipal water →3# ultrasonic rinsing of municipal water →4# hot water rinsing →5# vacuum drying →Unloading
2: Equipment description

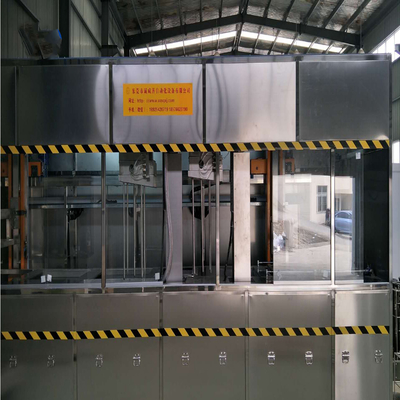

The cleaning machine is a fully automatic ultrasonic cleaning machine. The cleaning process is controlled by PLC. Six cleaning lines consist of ultrasonic cleaning tank, washing tank and drying device made of stainless steel. The operator puts the cleaning basket with workpiece into the cleaning tank. The gantry manipulator carries the workpiece to each working procedure in turn, and carries out a series of cleaning and drying for the workpiece. A cleaning process, the specific structure is shown in the drawings and the following description.
3: Basic Principles and Characteristics of Ultrasonic
The 28KHZ ultrasonic electric signal produced by the ultrasonic generator is transformed into mechanical oscillation at the same frequency through the piezoelectric effect of the transducer, and radiated in the cleaning solution in the form of the ultrasonic mechanical wave. Because of the alternating action of positive and negative pressure regions in the propagation of supersonic mechanical waves, numerous micro bubbles at more than 1000 atmospheric pressures are generated and exploded at any time, resulting in a fine local high pressure bombardment on the surface of the cleaner, which causes the rapid exfoliation of dirt on the surface and crevices of the object. This is the "cavitation effect" peculiar to the ultrasonic cleaning.
4: Configuration of matching sewage treatment system, using low-pressure distillation (oil-water separation), the specific requirements are as follows.
(1) No less than 300 litres of wastewater are treated per day, and a simple solid waste discharge outlet is set up to prevent pipeline blockage.
(2) The proportion of concentrated liquid in wastewater treatment is not more than 10%.
(3) Ensure that wastewater discharge meets the National Industrial Water Discharge Standard "Comprehensive Wastewater Discharge Standard".
(4) Setting up the optional functions of straight row and filter processing;
(5) Design and installation according to the actual situation of Party A (both sides determine the installation plan)
(6) Fully automatic operation, no one on duty;
(7) There is no need for biochemical treatment, and automatic alarm prompt for the replacement of vulnerable parts;
(8) Low maintenance cost, easy operation, low energy consumption of equipment and small space occupation;
5: Control System
1. All pumps, motors, circulation and heating systems can be controlled separately and displayed in a state.
2. Equipped with an independent distribution box, the circuit is divided into functional blocks for easy maintenance.
3. The equipment has good grounding device.
4. Equipped with manual and automatic mode, with sound and light alarm function.
5. All functions of the machine are displayed on the touch screen.
6. The equipment has good safety protection function. After each cleaning and drying process, when the workpiece is not removed, the machine does not work.
