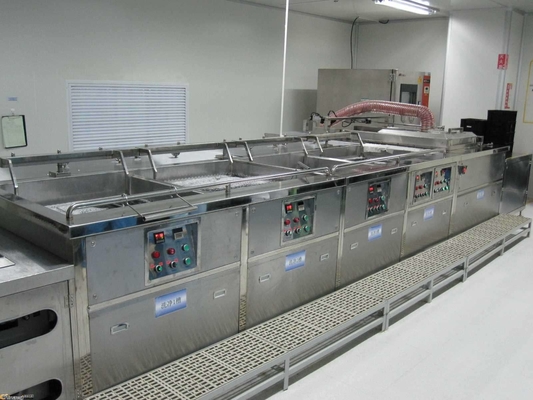

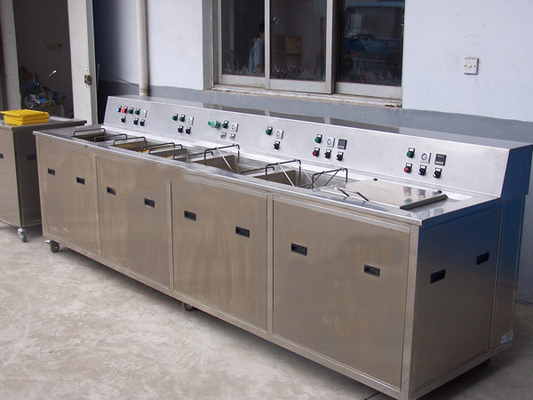

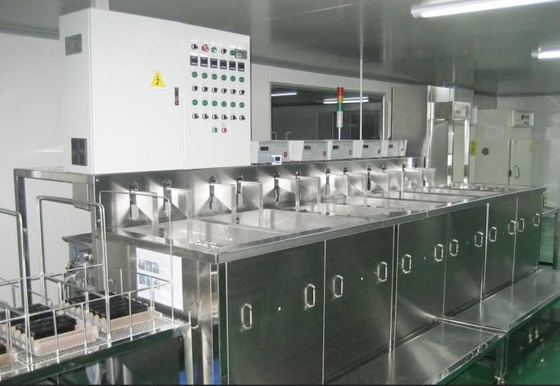

Optical Ultrasonic Filter Cleaning Machine Eleven Slot High Efficiency Electric Powered

Optical Ultrasonic Filter Cleaning Machine Eleven Slot High Efficiency Electric Powered

A: The main materials description:
1. The shock plate is made of SUS316# with SUS304# 2.0mm plate; the frame is made of SUS304# rectangular profile, and the base of the machine is equipped with support cup (M16).
2. The ultrasonic vibrator adopts the Japanese "Bundo" brand transducer chip;
3. The ultrasonic power amplifier tube adopts the Japanese "Fuji" high power tube;
4. The single display thermostat adopts the Japanese "Omron" brand, and the heating plate and heating tube adopt Taiwan "Baolong" brand;
5. Time system, buzzer and liquid level controller are produced in Taiwan or Hong Kong.
6. PLC adopts Japan's "Mitsubishi" series, and the sensor adopts Japanese high-quality parts;
7. The manipulator brake motor adopts the Taiwan “Dongyuan” brand;
8. The inverter adopts the Japanese "Panasonic" brand;
9. The filter pump adopts China “South” special stainless steel pump;
10. The drying system adopts Zhejiang “Sensen” high pressure fan.

Second: the main technical parameters of the equipment:
1. Ultrasonic total power: 8.4KW (a total of two ultrasonic tanks, each 1.2KW)
2. Ultrasonic frequency: 28, 40KHz
3. Number of filters: 4
4. Pump and motor total power: 5.5KW
5. The maximum total power of the equipment is about: 65KW
6. Power supply: 380VAC, 3p5w, 50HZ.
7. Total water and pure water consumption: about 0.8-1.5m3/h (external)
8. Host size is about: (length × width × height) See the picture.

Three: PLC program control manipulator main parameters: (two sets)
A. The lateral operation uses a 1/2HP motor.
B. Lateral running speed: 5-10m/min (adjustable)
C. Longitudinal operation using brake motor Italian brand, power: 2HP
D. Longitudinal running speed: 5-6m/min (adjustable)
E.PLC adopts Japan's "Mitsubishi" series, and the sensor adopts Japanese high-quality parts;
F. The manipulator column and guide rail are made of high-quality steel, and the manipulator cover is made of stainless steel sand rubber sheet;
G. Lifting arm guide rail is covered with A3 channel steel t=0.7mm stainless steel plate

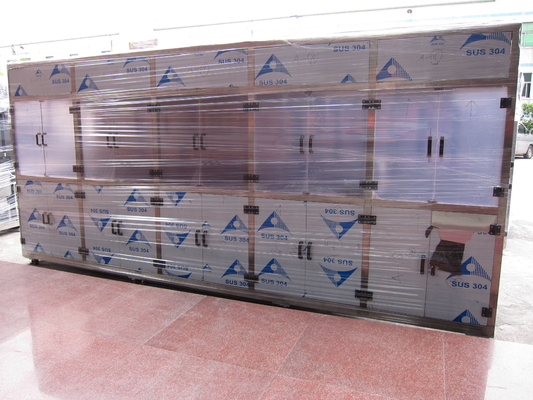

Four: closed cover part and exhaust system
1: The whole machine is fully enclosed structure, the upper part is movable door, equipped with δ=5mm tempered glass window, and the lower thrusting type movable maintenance door;
2: There is a lighting lamp inside the sealing cover, and the lighting frame and plug are all executed according to the national standard.
According to the requirements of your company's site, the large air duct is located at the rear side of the machine, and two φ=150mm exhaust ports are connected into a large air duct to facilitate connection with the demanding air exhaust system, and the water vapor in the equipment is volatilized. The odor is discharged.
