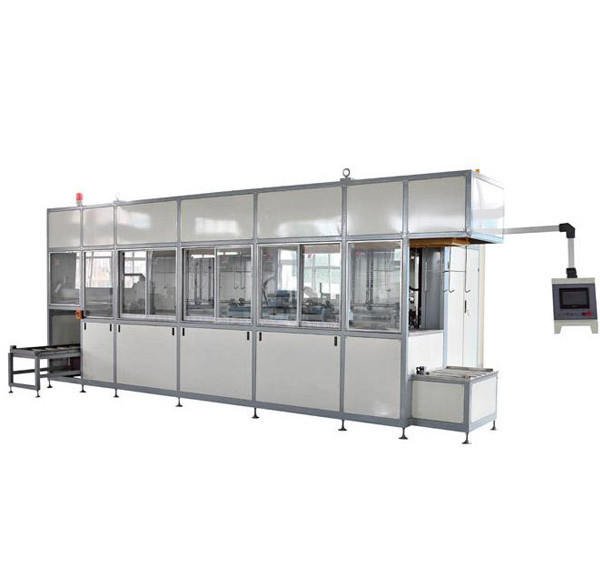

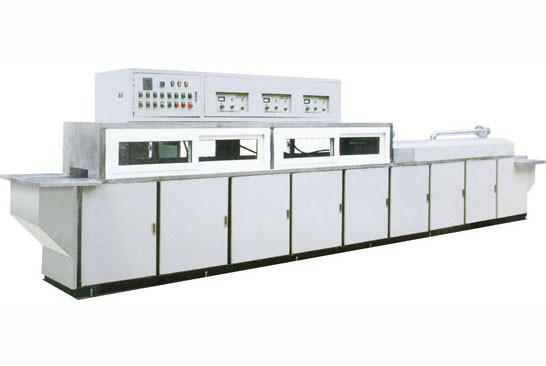

8048 precision copper ultrasonic cleaning machine

^{8048 precision copper ultrasonic cleaning machine}

<sup>First tank: ultrasonic detergent cleaning tank
(1) Effective inner groove size: 300 × 400 × 300L × W × H mm,
(2) The tank body is made of SUS304 2.0mm stainless steel sheet.
(3) equipped with water valve, drain valve, sewage into the total drain;
(4) Cleaning medium: cleaning agent plus city water
Second tank: municipal water rinse tank
(1) Effective inner groove size: 300 × 400 × 300L × W × H mm,
(2) The tank body is made of SUS304 2.0mm stainless steel sheet.
(3) equipped with water valve, drain valve, sewage into the total drain;
(5) Cleaning medium: municipal water
Third tank: ultrasonic rinsing tank
1. Cleaning tank:
(1) Effective inner groove size: 300 × 400 × 300L × W × H mm,
(2) The tank body is made of SUS304 2.0mm stainless steel sheet.
(3) equipped with water valve, drain valve, sewage into the total drain;
(5) Cleaning medium: cleaning agent plus city water
2. Ultrasound system:
(1) Ultrasonic frequency: 28KHZ;
(2) Ultrasonic power: 600W
(3) Ultrasonic vibrator: 12 pieces, 50W/only, immersed ultrasonic vibration plate, installed at the bottom of the tank body, the core component of the vibrator adopts Japanese “Bundo” brand chip;
Fourth slot: polishing slot
(1) Effective inner groove size: 300 × 400 × 300L × W × H mm,
(2) The tank body is made of SUS304 2.0mm stainless steel sheet.
(3) equipped with water valve, drain valve, sewage into the total drain;
(5) Cleaning medium: municipal water + polishing agent
The fifth six trough: city water rinse tank
(1) Effective inner groove size: 300 × 400 × 300L × W × H mm,
(2) The tank body is made of SUS304 2.0mm stainless steel sheet.
(3) equipped with water valve, drain valve, sewage into the total drain;
(4) Cleaning medium: municipal water</sup>

^{Seventh slot: passivation slot
(1) Effective inner groove size: 300 × 400 × 300L × W × H mm,
(2) The tank body is made of SUS304 2.0mm stainless steel sheet.
(3) equipped with water valve, drain valve, sewage into the total drain;
(4) Cleaning medium: municipal water + passivation agent
Eighth tank: rinsing tank
(1) Effective inner groove size: 300 × 400 × 300L × W × H mm,
(2) The tank body is made of SUS304 2.0mm stainless steel sheet.
(3) equipped with water valve, drain valve, sewage into the total drain;
(4) Cleaning medium: municipal water
Ultrasound system:
(1) Ultrasonic frequency: 28KHZ;
(2) Ultrasonic power: 600W
(3) Ultrasonic vibrator: 12 pieces, 50W/only, immersed ultrasonic vibration plate, installed at the bottom of the tank body, the core component of the vibrator adopts Japanese “Bundo” brand chip;}
